Medical Breathing Special Amplified Output Pressure Sensors - 120 CMH2O-D-4V

? Operating Pressure: -10 to 120 cm H2O
? Supply Supply Voltage: +4.5 to +5.5 Vdc
? Common-mode pressure: 10 psig
? Lead Temperature (soldering 2-4 sec.): 250°C
? Compensated Temperature: 5 to 50° C, -25 to 85° C
? Operating Temperature: -25 to 85° C
? Storage Temperature: -40 to 125° C
? Humidity Limits: 0 to 95% RH (non condensing)

  • Model Number: 120 CMH2O-D-4V
  • Data Sheet: Date Sheet File
Quantity:
- +

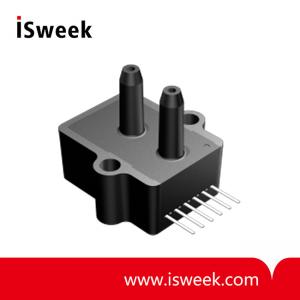

  • Medical Breathing Special Amplified Output Pressure Sensors

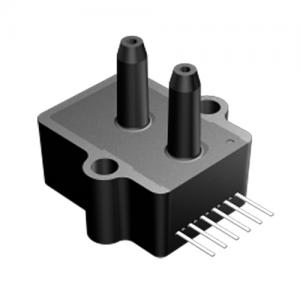

  • Medical Breathing Special Amplified Output Pressure Sensors
Mouse over image to zoom
Share:

Product Specification

Amplified Pressure Sensors
-10 cm H2O to 120 cm H2O Pressure Sensor

Amplified Output Pressure Sensors General Description
This Amplified Output pressure sensor is based upon a proprietary technology to compensate all errors. This model provides a calibrated amplified output with superior output characteristics. Output characteristics are tested at pressure and temperature and then digitally compensated using a proprietary 3D mapping scheme. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

Amplified Output Pressure Sensors Features
? 4 Volt ratiometric output
? Temperature Compensated
? Calibrated Zero and Span

Amplified Output Pressure Sensors Applications
? Medical Instrumentation
? Respiratory Breathing

Medical Breathing Special Amplified Output Pressure Sensors

Pressure Sensor Characteristics Maximum Ratings

Environmental Specifications
Supply Supply Voltage VS
+4.5 to +5.5 Vdc
Compensated Temperature
see specification
Common-mode pressure
10 psig
Operating Temperature
-25 to 85 °C
Lead Temperature (soldering 2-4 sec.)
250°C
Storage Temperature
-40 to 125 °C


Humidity Limits
0 to 95% RH (non condensing)

Amplified Output Pressure Sensors Standard Pressure Ranges
Part Number
Operating Pressure
Compensated Range
Proof Pressure
Burst Pressure
120 CMH2O-D-4V
-10 to 120 cm H2O
5 to 50° C
300 cmH2O
600 cmH2O
120 CMH2O-D-4V-PRIME
-10 to 120 cm H2O
-25 to 85° C
300 cmH2O
600 cmH2O

Performance Characteristics for 120 CMH2O-D-4V
Parameter
Minimum
Nominal
Maximum
Maximum
Operating Range, pressure
-10
- 120 cmH2O
Output Voltage, @120 cmH2O
4.40
4.5
4.6
volt
Output Voltage @ zero pressure
0.30 0.35 0.40 volt
Output Voltage @-10 cmH2O
0.23 0.28 0.33
volt
Offset Temperature Shift (5°C-50°C)
- - ±1.0
%span
Linearity, hysteresis error
- 0.05
±0.25
%fs
Span Shift (5°C-50°C)
- - ±1.0
%span

Performance Characteristics for 120 CMH2O-D-4V-PRIME
Parameter
Minimum
Nominal
Maximum
Maximum
Operating Range, pressure
-10
- 120 cmH2O
Output Voltage, @120 cmH2O
4.40
4.5
4.6
volt
Output Voltage @ zero pressure
0.30 0.35 0.40
volt
Output Voltage @-10 cmH2O
0.23 0.28
0.33
volt
Offset Temperature Shift (-25 to 85°C)
- - ±1.0
%span
Linearity, hysteresis error
- 0.05
±0.25
%fs
Span Shift (-25 to 85°C)
- - ±1.0
%span
