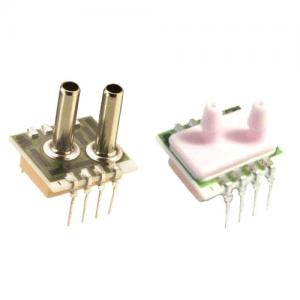

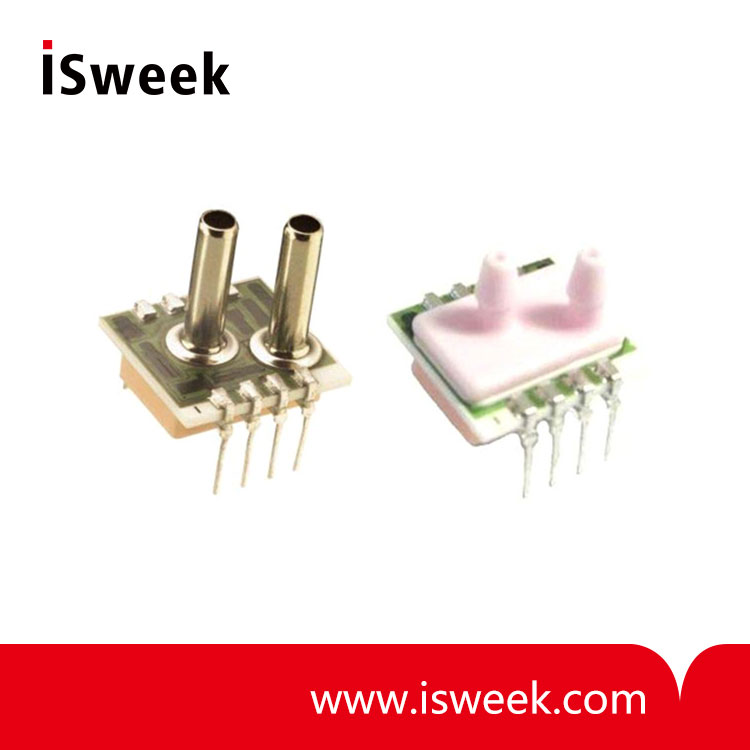

PC Board Mountable Pressure Sensors - 1200 Series

? PC Board Mountable Pressure Sensor
? Temperature Compensated
? 0 - 100mV Output
? Gage, Absolute, Differential
? Current/Voltage Excitation
? Dual-in-Line Package
? 1.0% Interchangeable Span
? Solid State Reliability
? Wide Compensated Range

Model Number: 1200 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

1200 Series PC Board Mountable Pressure Sensors Description
The 1200 series is a temperature compensated, piezoresistive silicon pressure sensor packaged in a dual-in-line configuration. Integral temperature compensation is provided over a wide temperature range using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier.

1200 Series PC Board Mountable Pressure Sensors Features
? PC Board Mountable Pressure Sensor
? Temperature Compensated
? 0 - 100mV Output
? Gage, Absolute, Differential
? Current/Voltage Excitation
? Dual-in-Line Package
? 1.0% Interchangeable Span (provided by gain set resistor)
? Solid State Reliability
? Wide Compensated Range

1200 Series PC Board Mountable Pressure Sensors Applications
? Medical Instruments
? Airspeed and Alititude Measurements,
? Process Control
? Factory Automation
? Vacuum Measurement
? Handheld Calibrators
? Leak Detection
? Sleep Apnea
? Respirators/Ventilators
? Air Duct Flow

1200 Series PC Board Mountable Pressure Sensor Product Definition

Model	Pressure Ranges	Type (G = Gage A = Absolute D = Differential)	Span	Supply		Compensated Temperature	Unique Feature
Model	Pressure Ranges	Type (G = Gage A = Absolute D = Differential)	Span	Voltage	Current	Compensated Temperature	Unique Feature
1210 Sub psi	0 - 5, 10" in H2O	G, D	40mV		1.5mA	0°C to 60°C	Barbed port option Current excitation
1210 1psi	0 - 1psi	G, D	100mV		1.5mA	0°C to 50°C	Barbed port option Current excitation
1210 Standard	0 - 2, 5, 15, 30, 50, 100psi	G, A, D	100mV		1.5mA	0°C to 50°C	Barbed port option Current excitation
1220 1ps	0 - 1psi	G, D	50mV	1.235Vref		0°C to 50°C	Voltage excitation
1220 Standard	0 - 2, 5, 15, 30, 50, 100psi	G, A, D	50mV	1.235Vref		0°C to 50°C	Voltage excitation
1230 UltraStable?	0 - 15, 30, 50, 100psi	G, A, D	100mV		1.5mA	-20°C to +85°C	Current excitation UltraStable?
1240 UltraStable?	0 - 15, 30, 50, 100psi	G, A, D	50mV	1.235Vref		-20°C to +85°C	Voltage excitation UltraStable?
