Piezoelectric Film Sensors - FS-2513P

● High Mechno-electrical coefficiency in planar, thickness and hydrostatic modes
● Low mechanical and acoustic impedance
● High resistance to moisture
● Pliant, flexible, tough and lightweight
● Self-generated voltage, non-contact, rustless, free of sparking

  • Model Number: FS-2513P
  • Data Sheet: Date Sheet File
Quantity:
- +

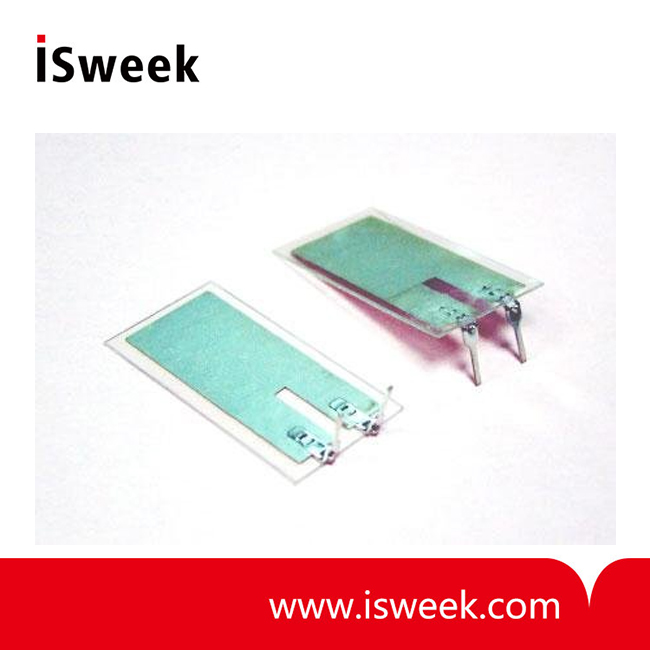

  • Piezoelectric Film Sensors
  • Piezoelectric Film Sensors
Mouse over image to zoom
Share:

Product Specification

1.Piezoelectric Film Sensors FS-2513P Description:

    Pro-Wave now presents a series of mechno-electrical sensors and detectors produced by advanced piezoelectric polymer film technology. The polymer film of polyvinylidene fluoride (PVF2) exhibits a conspicuous piezoelectric effect and also has high compliance comparing with other piezoelectric crystals or ceramic materials. Because of its superior piezoelectric strain constant (g value), 10-20 times larger than piezoelectric ceramic, it is an ideal sensing material for converting mechanical to electrical energy.

    Besides the standard products shown on this catalogue, we are also developing a series of sensing devices by using this particular piezoelectric thin film material. Please contact with us for your special needs.



2.Piezoelectric Film Sensors FS-2513P Features:

High Mechno-electrical coefficiency in planar, thickness and hydrostatic modes

Low mechanical and acoustic impedance

High resistance to moisture

Pliant, flexible, tough and lightweight

Self-generated voltage, non-contact, rustless, free of sparking



3.Piezoelectric Film Sensors FS-2513P Applications:

Vibration sensors and motion detectors

Low weight accelerometers

Pressure or force sensors

Keyboards, keypads and touch panels

Coin and impact sensors

Microphones and headset speakers

Other mechno-electrical and electromechanical devices



4.Piezoelectric Film Sensors FS-2513P Specifications:

Model Number

FS-2513P

 Unit

Type Lead

Pins

-

Voltage sensitivity at fr

70

mV / ms?2

Transverse sensitivity

10

mV / ms?2

Resonant frequency (fr)

80±10

Hz

Capacitance

660±30%

pF@1KHz

Operation voltage (Vcc)

-

DC volts

Operation current

-

mA

Max. output current

-

mA

Operation temperature

-20 - +60

°C

Storage temperature

-40 - +70

°C



5.Piezoelectric Film Sensors FS-2513P Dimensions (in mm):
