Product Specification

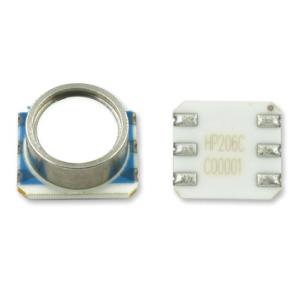

HP206C Smart Precision Barometer And Altimeter Sensor Descriptions

The HP206C employs a MEMS pressure sensor with an I2C interface to provide accurate temperature, pressure or altitude data.The sensor pressure and temperature outputs are digitized by a high resolution 24-bit ADC. The altitude value is calculated by a specific patented algorithm according to the pressure and temperature data. Data compensation is integrated internally to save the effort of the external host MCU system. Easy command-based data acquisition interface and programmable interrupt control is available. Typical active supply current is 5.3μA per measurement-second while the ADC output is filtered and decimated by 256. Pressure output can be resolved with output in fractions of a Pascal, and altitude can be resolved in 0.1 meter. Package is surface mount with a stainless steel cap and is RoHS compliant.

HP206C Smart Precision Barometer And Altimeter Sensor Features

? Supply voltage: 1.8V to 3.6V
? Pressure range: 300mbar~1200mbar
? Programmable events and interrupt controls
? Fully data compensated
? Direct Reading, compensated:
  - Pressure: 20-bit measurement (Pascals)
  - Altitude: 20-bit measurement (Meters)
  - Temperature: 20-bit measurement (Degrees Celsius)
? Altitude Resolution down to 0.1 meter
? Standby current <0.1μA
? Operation temperature: -40 to +85℃
? High-speed I2C digital output interface
? Size: 6.8 x 6.2 x 3.0 (+0.2) mm

HP206C Smart Precision Barometer And Altimeter Sensor Applications
? High Precision Mobile Altimeter / Barometer
? Industrial Pressure and Temperature Sensor System
? Automotive Systems
? Personal Electronics Altimetry
? Adventure and Sports watches
? Medical Gas Control System
? Weather Station Equipment
? Indoor Navigation and Map Assist
? Heating, Ventilation, Air Conditioning

HP206C Smart Precision Barometer And Altimeter Sensor Mechanical and Electrical Specifications

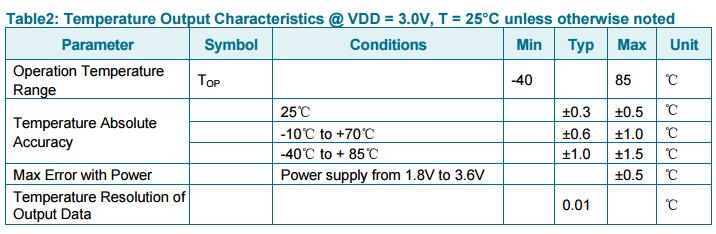

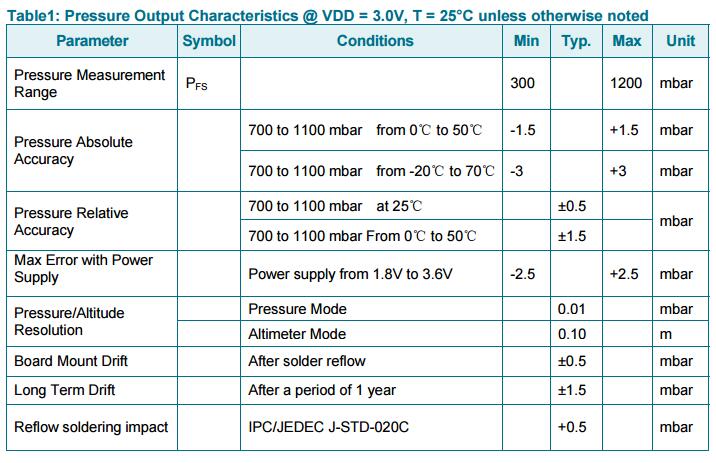

1. Pressure and Temperature Characteristics

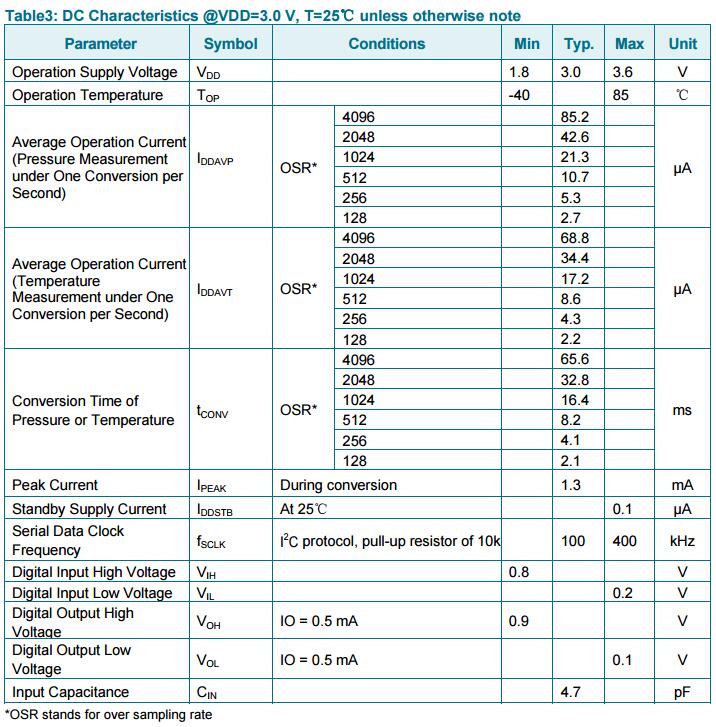

2. Electrical Characteristics

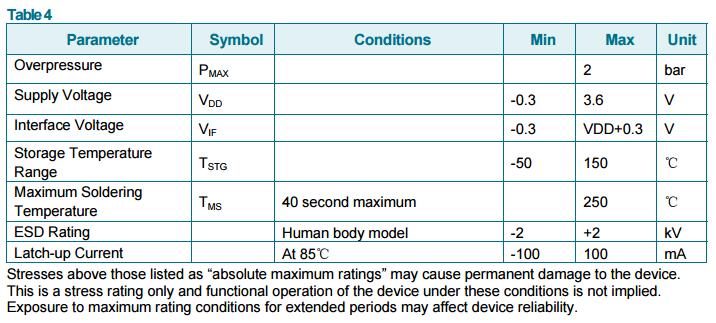

3. Absolute Maximum Rating
