Product Specification

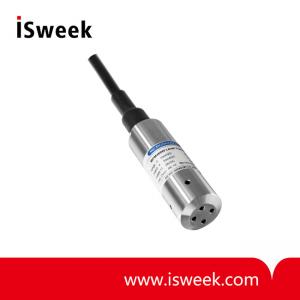

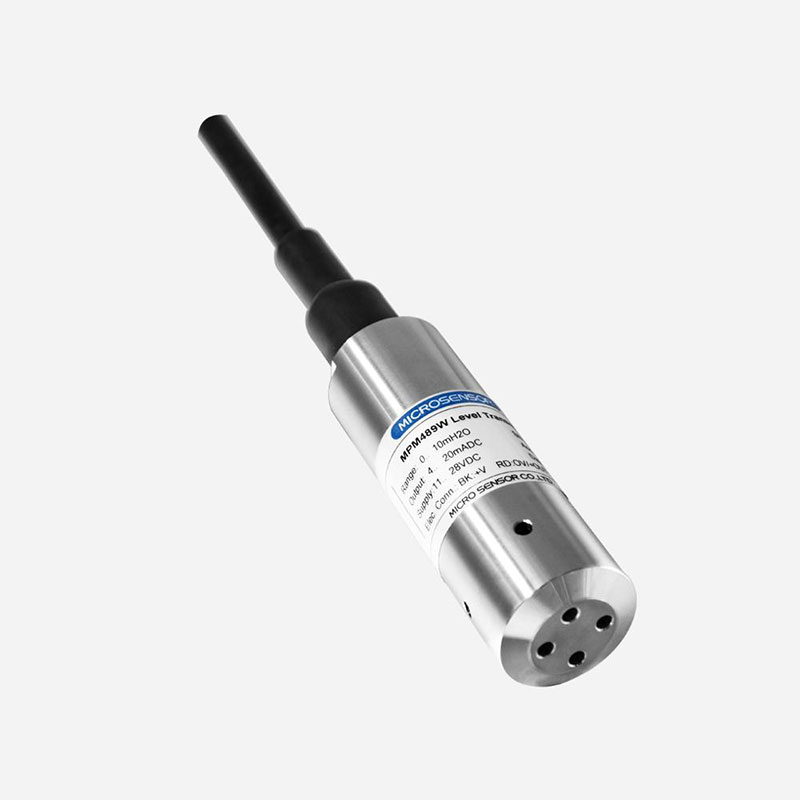

MPM489W Submersible Level Transmitter Introduction：

    MPM489W is full sealed submersible level transmitter. It is made by building in high stable and reliable OEM pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.

    MPM489W level transmitter has compact size, light weight and good stability; it can be used for water or liquid measure and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.

MPM489W Submersible Level Transmitter Specification：

? Range(FS): 1, 2, 5, 10, 20, 50, 100, 200mH2O

? Overpressure: 1.5 times FS

? Accuracy: ±0.5%FS

? Stability: range>10mH2O, ±0.2%FS/year

                 range≤10mH2O, 20mmH2O/year

? Thermal drift: zero span

                range>10mH2O ±0.02%FS/℃ ±0.05%FS/℃

                range≤10mH2O ±0.05%FS/℃ ±0.05%FS/℃

? Application temp. range: -10℃ ~70℃ ; -10℃ ~60℃ (Exia)

? Storage temp. range: -20℃ ~85℃

? Power supply: 11V~28VDC; 11V~28VDC; 5V DC

? Output signal: 4mA~20mADC(2-wire); 0~5/10VDC(3-wire);

                          0.5V~4.5V DC(3-wire)

? Load: ≤(U-11)/0.02Ω(2-wire); ≥10k(3-wire); ≥10k(3-wire)

MPM489W Submersible Level Transmitter Features：

? Integrated construction, unnecessary to do outer adjustment

? Sensor housing protection IP68, connection box protection IP65;

? Cost-efficient, high reliability and stability;

? RoHS and ATEX approved

? Explosion-proof product conforms to ExiaIICT6 Ga of Standard

MPM489W Submersible Level Transmitter Construction Material：

? Housing: stainless steel 304

? O-ring: Viton

? Rubber casing: NBR

? Cable: φ7.5mm polyethylene cable

? Diaphragm: stainless steel 316L
