Subminiature Pressure Transducer - PSG 120/PSG 122

? Pressure Ranges: 15 psi to 15 ,000 psi
? Temperature Range: 60? to 160?F
? Bridge Rresistance: 350 ohm
? Excitation: 5 Vdc
? Unitized Diaphragm
? High Frequency
? Flush Diaphragm
? Stainless Steel

Model Number: PSG 120/PSG 122
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PSG 120/PSG 122 - Subminiature Transducer

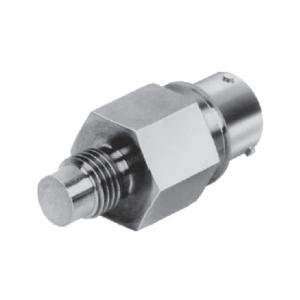

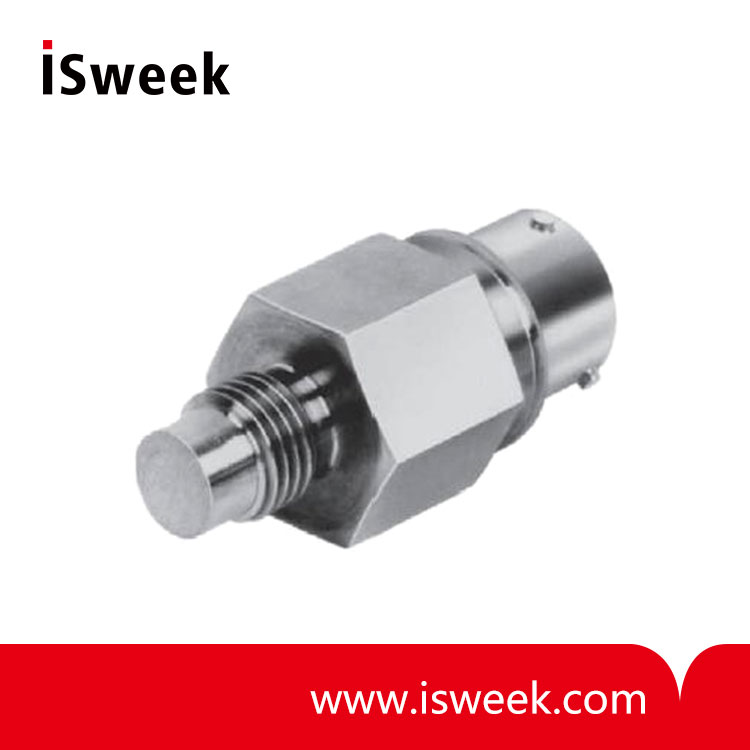

The Models PSG 120 and PSG 122 are subminiature pressure transducers manufactured with a unitized stainless steel diaphragm allowing for a thin diaphragm and heavy side walls from one piece of stainless steel. This design produces a very sensitive but rugged transducer able to cover the entire pressure range from 15 psi to 15,000 psi. The PSG 120 and PSG 122 transducers are ideal in corrosive fluid environments and are recommended for applications involving rough handling or where a completely hermetically sealed transducer is required.

PSG 120/PSG 122 Subminiature Pressure Transducer Feature
? Unitized Diaphragm
? High Frequency
? Flush Diaphragm
? Stainless Steel

PSG 120/PSG 122 Subminiature Pressure Transducer Specifications

Pressure Ranges	15 psi to 15 ,000 psi
Linear/Hysteresis	15 psi to 100 psi- ± .1mv 150 psi to 15,000 psi ± 0.5% F.S.
Repeatability	15 psi to 100 psi- ±0.02 mV 150 psi to 15,000 psi - ±0.1% F.S.
Material	Stainless Steel
Temperature Range	60° to 160°F
Output	15 psi to 100 psi - .1mv/psi 150 psi to 10,000 psi -2 mV/V
Bridge Rresistance	350 ohm
Excitation	5 Vdc
Safe Overload	100% Over Capacity

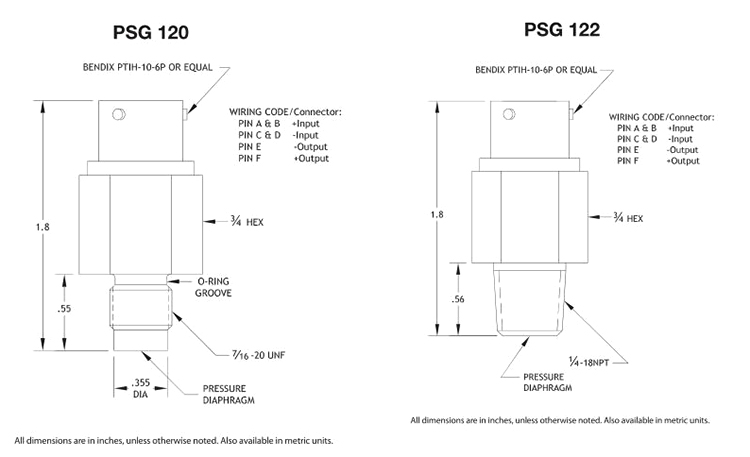

Pressure Port	7/16-20 UNF Male PSG 120 1/4-18 NPT Male PSG 122
Cable	Twisted Leads - 5 Ft

PRESSURE RANGES
PSG 120	PSG 122
15; 25; 50; 75; 100; 150; 200; 300; 500; 750; 1000 psi	15; 25; 50; 75; 100; 150; 200; 300; 500; 750; 1000 psi
1500; 2000; 3000; 5000; 7500; 10,000	1500; 2000; 3000; 5000; 7500; 10,000

*Stocked ranges are in bold type
