Vortex II Series Heavy Duty Anemometer with Reed Switch - Vortex II Series

? SENSOR RANGE: 125+ MPH
? ROTOR DIAMETER: approx. 6 in (152 mm)
? MOUNTING
Flat metal bracket: 2 holes provided
Tubular mounting option: 2 holes provided
? ACCURACY: +/-4% of reading or 1 mph
? WIDTH: approx. 6 in (152 mm)

  • Model Number: Vortex II Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Vortex II Series Heavy Duty Anemometer with Reed Switch
  • Vortex II Series Heavy Duty Anemometer with Reed Switch
  • Vortex II Series Heavy Duty Anemometer with Reed Switch
Mouse over image to zoom
Share:

Product Specification

Vortex II Series Heavy Duty Anemometer

This new (November 2013) heavy duty anemometer has a longer shaft than the original Vortex (for reduced vibration), and includes options for Reed or Hall Sensor, Tubular Mount, or Metal Cups. Ideally suited for applications to measure wind speed in all conditions.

Vortex II Series Heavy Duty Anemometer Specification

SENSOR TYPE

3-Cup Lexan rotor (Metal option)
Internal sensor is a dry contact reed switch (standard), Hall Sensor (optional).
The Hall Sensor requires 5VDC input

SENSOR RANGE

125+ MPH

DISPLAY

Optional Display Kit - directly compatible with the reed switch option (not the Hall Sensor Option)

MOUNTING

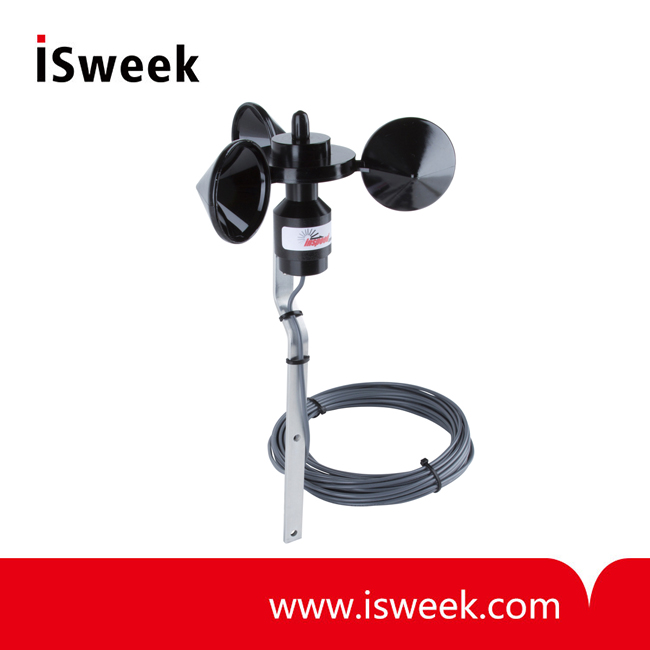

Flat metal bracket: 2 holes provided
Tubular mounting option: 2 holes provided

ACCURACY

+/-4% of reading or 1 mph, whichever is greater (depends on the display used)

ROTOR DIAMETER

approx. 6 in (152 mm)

LENGTH

approx. 11 in (280 mm) overall with the flat metal bracket
approx. 16 in with the optional tubular mount.

WIDTH

approx. 6 in (152 mm)


The Vortex II Series Anemometer includes the following:
    ? Hand made Delrin body with longer shaft and internal PC Board for sensors and options

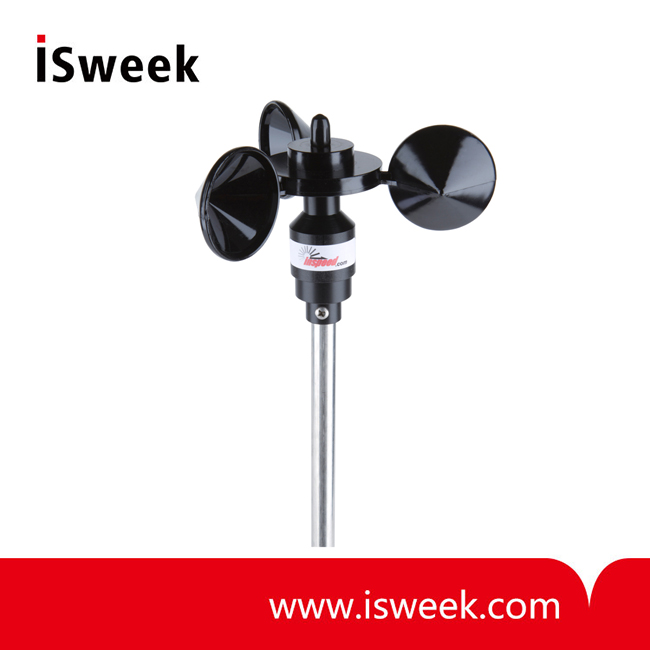

    ? Optional heavy duty Aluminum tube mounting

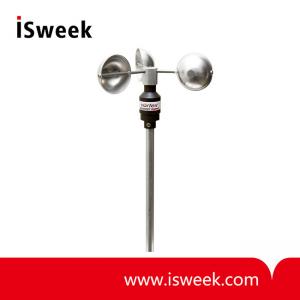

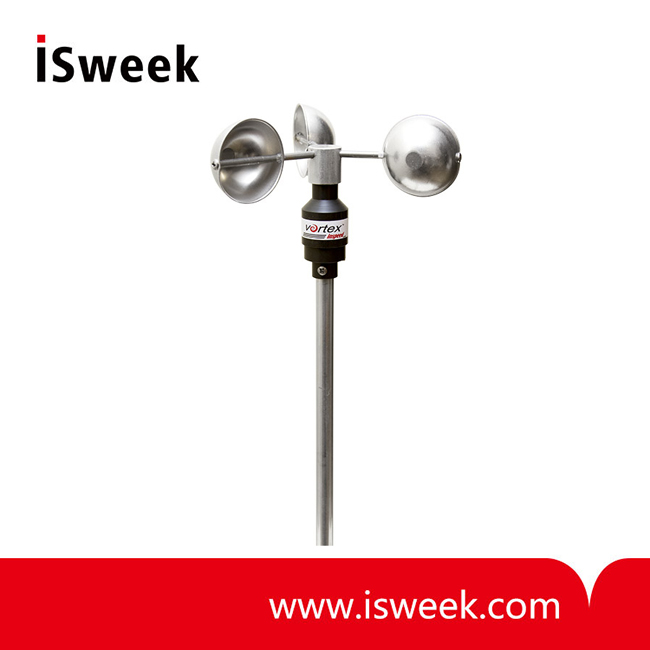

    ? Optional metal cups
    ? Optional wire lengths
    ? Optional Hall (single pulse) or Optical Multi-Pulse versions
    ? Optional Diplay Kit
      NOTE: ONLY the reed switch verion works with the Display Kit
    ? Completely serviceable and rebuildable!

The Vortex series of wind sensors have a reputation for being well made, accurate, reliable, and affordable. This latest version includes enhancements that our customers have been asking for over the years.

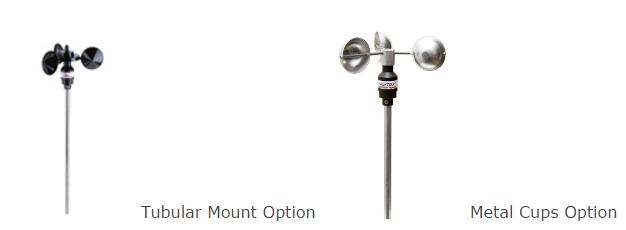

Here is what the tubular mount option and the metal cups options look like:
