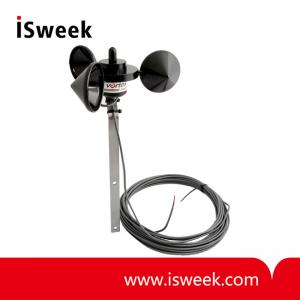

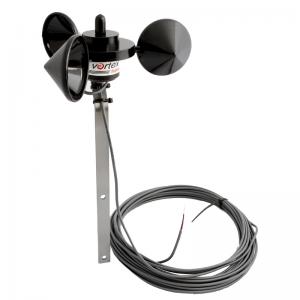

Vortex Wind Sensor Classic - Classic

? a high quality 3-cup rotor pressed on a stainless steel shaft
? a rugged Delrin body with bronze and Rulon bushings
? a flat aluminum mounting bracket with 2 holes
? reed switch and magnet providing one pulse per rotation
? 25 feet of exterior grade wire (more available on request)

  • Model Number: Classic
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Vortex Wind Sensor Classic
  • Vortex Wind Sensor Classic
Mouse over image to zoom
Share:

Product Specification

Vortex Wind Sensor Classic

Rugged wind sensor handles speeds from 5 to over 125 mph. Reed switch/magnet provides one pulse per rotation. Comes with exterior grade wire, custom lengths available on request. It is designed to provide very accuracy at an affordable price  with a sapphire/tungsten carbide bearing system for super low friction and long life.

The Vortex Wind Sensor includes the following major items:
    ? a high quality 3-cup rotor pressed on a stainless steel shaft
    ? a rugged Delrin body with bronze and Rulon bushings
    ? a flat aluminum mounting bracket with 2 holes
    ? reed switch and magnet providing one pulse per rotation
    ? 25 feet of exterior grade wire (more available on request)

Converting pulses to wind speed is simple using the following formula:
2.5 mph per Hz (1 Hz = 1 pulse/second)
The Vortex Wind Sensor has been tested successfully on various electronic devices with over 1,500 feet (500 m) of wire.

Vortex Wind Sensor Specification

SENSOR TYPE

3-Cup rotor
Reed switch/magnet provide 1 pulse per rotation.

OUTPUT for D2 Rotor

1 pulse per rotation
2.5 mph per Hz

OUTPUT for Maximum Rotor

1 pulse per rotation
3.4 mph per Hz

ROTOR DIAMETER

approx. 5 in (~125 mm)

SPEED RANGE

approx. 3 mph to 125+ mph (~5 kph to over 200 kph)

MOUNTING BRACKET

Supplied with an aluminum mounting bracket with 2 holes for screws.
Designed to be mounted on top of a pole or bracket.
Custom brackets available up request (offset, for example)

WIRE

Standard length is 25 feet (8m)
custom lengths available upon request - tested OK to over 1,500 feet
The wire is provided stripped and unterminated
2 small wire nuts provided to connect to the display once installed

DISPLAY

None provided with the sensor only
Formula for converting pulses to speed: 2.5 mph per Hz (2.5 mph per pulse/second)

POWER

No power required
