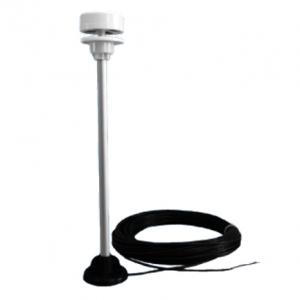

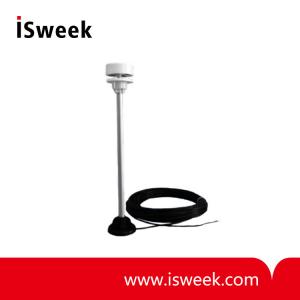

Ultrasonic Wind Speed Sensor - CV7-V

Output rate: 2 Hz / 30 Hz measurement
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1°
Power supply: 8 V to 30 V DC
Electrical consumption: 9 mA
Op. temp. without icing: -15° C to +55° C

  • Model Number: CV7-V
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Ultrasonic Wind Speed Sensor
  • Ultrasonic Wind Speed Sensor
Mouse over image to zoom
Share:

Product Specification

CV7-V Ultrasonic Wind Speed Sensor Description

The CV7 is easily integrated into measurement and monitoring systems. The CV7-V is powered by 8-30 VDC power supply and it outputs RS232/RS422 (5V level signal) / NMEA0183.


CV7-V Ultrasonic Wind Speed Sensor Application
Static wind sensor
A conventional wind vane/anemometer features mechanical rotating parts. These moving parts expose the sensor to failure.
CV7 series was extensively tested in Marine applications for both precision and robustness.

Configurable wind sensor
CV7-V can be programmed and configured for : angle correction, smoothing time constant, units of measurement and interface format.

CV7-V connexion
CV7-V can be used connected to a PC and any systems featuring an NMEA? input port and specific pieces of equipment using conventional formats.
In PC mode, this bidirectional sensor can be set up for angle correction, damping, measure units and interface format.

Quality
All LCJ Capteurs are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.


CV7-V Ultrasonic Wind Speed Sensor Specification:

Output data format

NMEA0183; MWV, XDR

Information transmited

Instant. W. Speed, Instant. W. Angle, avaibility

Output rate

2 Hz / 30 Hz measurement

Wind module sensitivity

0.12 m/s

Wind module resolution

0.05 m/s

Wind module dynamic

0.12 to 40 m/s

Direction sensitivity

+/-1.5°

Direction resolution

Power supply

8 V to 30 V DC

Electrical consumption

9 mA

Op. temp. without icing

-15° C to +55° C

Cable

25 m / 4x0.22 mm2

Connection

4 wires

Weight of the head

100 gr

Weight of unit assembly

200 gr with mounting part

Mounting

Vertical ; 300 aluminium arm, ? 16 mm


Options

These industrial option are "Din" boxes with:
? 1x connection for 24VDC/AC power supply
? 1x connection for CV7-V data
? 1x 12 V connection for CV7-V power supply
? Galvanic isolation between power supply and analog outputs
? Galvanic isolation between power supply and sensor's power supply
? The sensor input is optocoupled.


420 AC

This option features :
? 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.

? 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
? 2 Dry contacts for wind speed alarm


ANA-AC

This option features 3 outputs 0-10V:

? 0-15m/s

? 0-30m/s or 0-40m/s selectable

? 0-359° wind direction.
