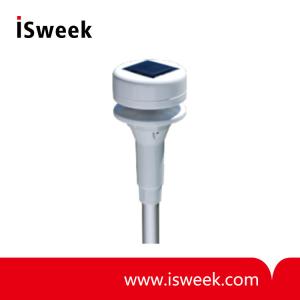

Ultrasonic Wind Speed Sensor - SONIC-ANEMO-DZP

Output rate: 1 measure and update per second
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1° (9 bits)
Power supply: Photovoltaic Panel, Battery LIFEPO4
Op. temp. without icing: -15° C to +55° C

  • Model Number: SONIC-ANEMO-DZP
  • Data Sheet: Date Sheet File
Quantity:
- +

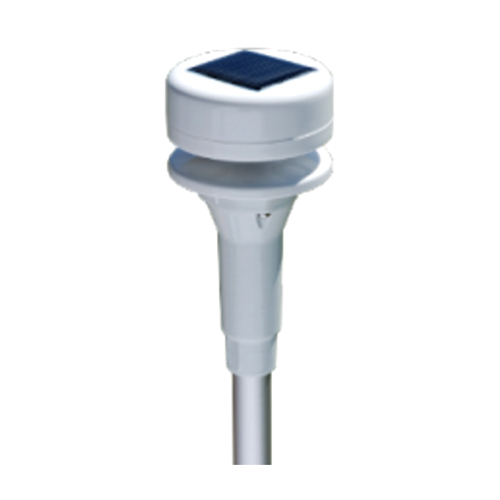

  • Ultrasonic Wind Speed Sensor
  • Ultrasonic Wind Speed Sensor
Mouse over image to zoom
Share:

Product Specification

SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor Description:

SONIC-ANEMO-DZP UltraSonic Anemometer is powered by its own solar panel. It is well suited to remote installations where power consumption matters. This unit connects directly to a pulse or potentiometer input (i.e. on Davis instruments). It is a useful product for professionals, integration to AWS (Autonomous Weather Station), and well-informed users.

SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor Specification:

Output data format

WA: 25KΩ, 5V max, WS: Pulse open collector 10 mA max

Information transmited

Instant. W. Speed, Instant. W. Angle

Output rate

1 measure and update per second

Wind module sensitivity

0.12 m/s

Wind module resolution

0.05 m/s

Wind module dynamic

0.12 to 40 m/s

Direction sensitivity

+/-1.5°

Direction resolution

1° (9 bits)

Power supply

Photovoltaic Panel, Battery LIFEPO4

Electrical consumption

n.a. / operates from exposition of 50 W /m2

Op. temp. without icing

-15° C to +55° C

Cable

5 m / 4x0.22 mm2 UV proof

Connection

RJ11

Weight of the head

N/A

Weight of unit assembly

200 gr with mounting part

Mounting

Vertical ; 300 aluminium arm, ? 16 mm


Options

These industrial option are "Din" boxes with:
? 1x connection for 24VDC/AC power supply
? 1x connection for CV7-V data
? 1x 12 V connection for CV7-V power supply
? Galvanic isolation betwen power supply and analog outputs
? Galvanic isolation betwen power supply and sensor's power supply
? The sensor input is optocoupled.


420 AC

This option features :
? 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
? 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
? 2 Dry contacts for wind speed alarm


ANA-AC

This option features 3 outputs 0-10V:
? 0-15m/s
? 0-30m/s or 0-40m/s selectable
? 0-359° wind direction.
