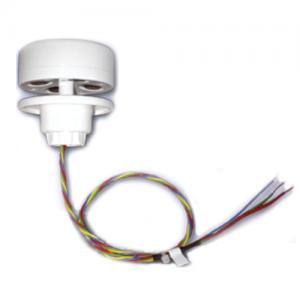

Ultrasonic Wind Speed Sensor - CV7-OEM

Output rate: 2 Hz / 30 Hz measurement │ *4 Hz / 60 Hz meas.
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1°
Power supply: 8 V to 30 V DC
Electrical consumption: 9 mA
Op. temp. without icing: -15° C to +55° C

  • Model Number: CV7-OEM
  • Data Sheet: Date Sheet File
Quantity:
- +

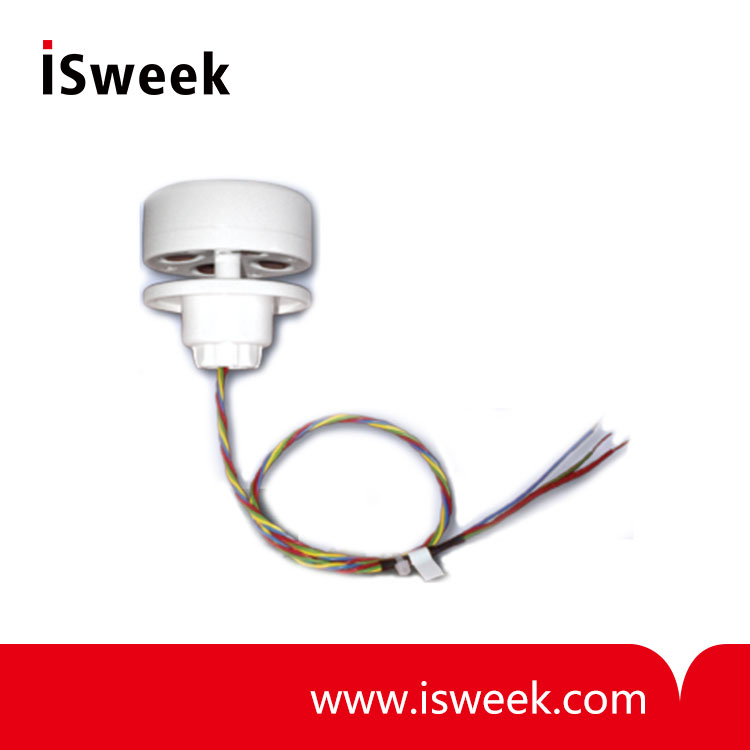

  • Ultrasonic Wind Speed Sensor
  • Ultrasonic Wind Speed Sensor
Mouse over image to zoom
Share:

Product Specification

CV7-OEM Ultrasonic Wind Speed Sensor Description
CV7-OEM shows the same features as the CV7 standard: light, compact and low energy consumption.

With this OEM version of the Static Wind Transducer CV7, you can add an accurate Ultrasonic Wind Sensor to your own products and installations. It is powered by 8-30 VDC power supply and it outputs RS232/RS422/NMEA0183 signal.


CV7-OEM Ultrasonic Wind Speed Sensor Specification:

Output data format

NMEA0183, MWV, XDR

Information transmited

Instant. W. Speed, Instant. W. Angle, avaibility

Output rate

2 Hz / 30 Hz measurement │ *4 Hz / 60 Hz meas.

Wind module sensitivity

0.12 m/s

Wind module resolution

0.05 m/s

Wind module dynamic

0.12 to 40 m/s

Direction sensitivity

+/-1.5°

Direction resolution

Power supply

8 V to 30 V DC

Electrical consumption

9 mA

Op. temp. without icing

-15° C to +55° C

Cable

50 cm / 4x0.22 mm2

Connection

4 wires

Weight of the head

100 gr

Weight of unit assembly

N/A

Mounting

N/A


Options
These industrial option are "Din" boxes with:
? 1x connection for 24VDC/AC power supply
? 1x connection for CV7-V data
? 1x 12 V connection for CV7-V power supply
? Galvanic isolation between power supply and analog outputs
? Galvanic isolation between power supply and sensor's power supply
? The sensor input is optocoupled.

420 AC
This option features :
? 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
? 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
? 2 Dry contacts for wind speed alarm

ANA-AC
This option features 3 outputs 0-10V:
? 0-15m/s
? 0-30m/s or 0-40m/s selectable
? 0-359° wind direction
