Wind Speed Sensor Weather Monitoring - MX600 MX500 MX300 MX200

? Weather-protected sensor unit designed for maximum portability and utility
? GPS for compensated wind speed
? Automatic self-alignment of wind direction using internal compass
? No mechanical components means virtually no maintenance
? Low power consumption – ideal for battery or solar-powered installations
? One-year warranty

  • Model Number: MX600 MX500 MX300 MX200
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Wind Speed Sensor Weather Monitoring
  • Wind Speed Sensor Weather Monitoring
  • Wind Speed Sensor Weather Monitoring
  • Wind Speed Sensor Weather Monitoring
Mouse over image to zoom
Share:

Product Specification

Innovative Weather Monitoring


Especially ideal for mobile installations, Magellan MX Weather Stations combine the convenience of an all-in-one multi-parameter weather sensor with an internal compass and GPS. Four different models offer sensor options including:
? Ultrasonic wind speed and direction measurement
? A combined temperature, pressure, humidity instrument mounted inside three double louvered, naturally aspirated radiation shields
? Optical rain gauge provides measurements based on the size and number of drops

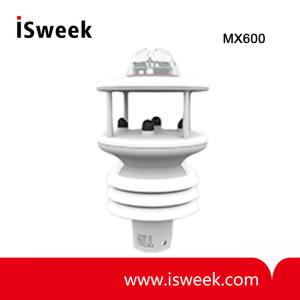

MX600: rain gauge, ultrasonic wind speed and direction, temperature, relative humidity, air pressure, compass, GPS

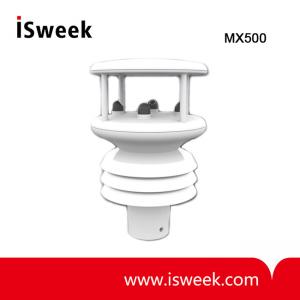

MX500: ultrasonic wind speed and direction, pressure, temperature, relative humidity, compass, GPS

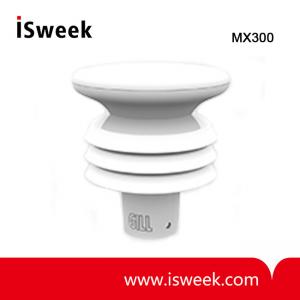

MX300: pressure, temperature, relative humidity (no compass or GPS)

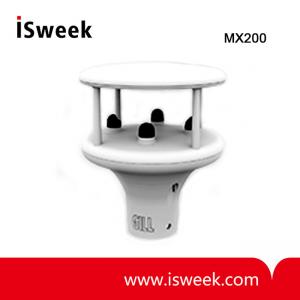

MX200: ultrasonic wind speed and direction only, compass, GPS


Magellan MX Weather Stations Feature
? Weather-protected sensor unit designed for maximum portability and utility
? GPS for compensated wind speed
? Automatic self-alignment of wind direction using internal compass
? No mechanical components means virtually no maintenance
? Low power consumption – ideal for battery or solar-powered installations
? One-year warranty


Sensor Specifications

Temperature
Range: -40 to +70°C (-40 to +185°F)
Accuracy: ±0.3°C (20°C); ±0.54°F (68°F)
Resolution: 0.1°C (0.18°F)
Units: °C, °F

Barometric Pressure
Range: 8.85 - 32.48 inHg (300 - 1100 hPa)
Accuracy: ±0.015 inHg (±0.5 hPa) @ 77°F(25°C)
Resolution: 0.003 inHg (0.1 hPa)
Units Available: kPa, hPa, mbar, inHg

Wind Speed
Range: 0-134mph (0-60 m/s)
Accuracy: ±3% 0.02 mph to 90 mph (±3% 0.01m/s to 40 m/s), ±5% above 90 mph and up to 134
Resolution: 0.02 mph (0.1 m/s)
Units Available: knots, mph, km/hr, m/s

Wind Direction
Range: 0 to 359°
Accuracy: ± 3° 0.02 mph to 90 mph (0.01 m/s to 40 m/s), ±5° above 90 mph and up to 134 mph (40 m/s and up to 60 m/s)
Resolution: 1.0°

Relative Humidity
Range: 0 to 100%
Accuracy: ± 2% @ 68°F (10%-90% RH)
Resolution: 1.0%

Precipitation
Accuracy: ±2% at <6 inches/hour
Resolution: (0.007in/tip) (0.2mm/tip)
Units Available: mm, inches

Compass
Measurement Range: 0-359°
Resolution: 1°

GPS
Horizontal Position Accuracy: Less than 2.5M Circular Error Probability
Accuracy: Longitude and Latitude report to 6 decimal places
