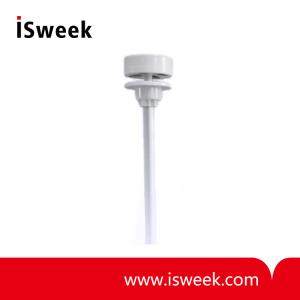

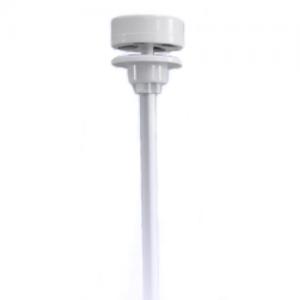

Ultrasonic Wind Speed Sensor - SONIC-ANEMO-DVC

Output rat: 2 Hz / 30 Hz measurement
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s (16 bits)
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1° (9 bits)
Power supply: 2.7 V to 35 V DC
Electrical consumption: 2.6 mA Avg. @ 12 V
Op. temp. without icing: -15° C to +55° C

Model Number: SONIC-ANEMO-DVC
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SONIC-ANEMO-DVC Ultrasonic Wind Speed Sensor Description:

As Worldwide Premiere launch, a specific version of the CV7-V which connects directly to the wind sensor input on Davis instruments.

This sensor will allow the replacement of mechanical anemometers / wind vanes with no need of anything else but power supply.

It’s an exclusive and useful product for both, professionals and well-informed amateurs.

SONIC-ANEMO-DVC Ultrasonic Wind Speed Sensor Specification:

Output data format	WA: 25KΩ, 5V max; WS: Pulse open collector 10 mA max
Information transmited	Instant. W. Speed, Instant. W. Angle
Output rate	2 Hz / 30 Hz measurement
Wind module sensitivity	0.12 m/s
Wind module resolution	0.05 m/s (16 bits)
Wind module dynamic	0.12 to 40 m/s
Direction sensitivity	+/-1.5°
Direction resolution	1° (9 bits)
Power supply	2.7 V to 35 V DC
Electrical consumption	2.6 mA Avg. @ 12 V
Op. temp. without icing	-15° C to +55° C
Cable	5 m / UV proof
Connection	RJ11, 2 wires Power Supply
Weight of the head
Weight of unit assembly	200 gr with mounting part
Mounting	Vertical, 300 aluminium arm, ? 16 mm

Options
These industrial option are "Din" boxes with:
? 1x connection for 24VDC/AC power supply
? 1x connection for CV7-V data
? 1x 12 V connection for CV7-V power supply
? Galvanic isolation betwen power supply and analog outputs
? Galvanic isolation betwen power supply and sensor's power supply
? The sensor input is optocoupled.

420 AC
This option features :
? 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
? 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
? 2 Dry contacts for wind speed alarm

ANA-AC
This option features 3 outputs 0-10V:
? 0-15m/s
? 0-30m/s or 0-40m/s selectable
? 0-359° wind direction.
