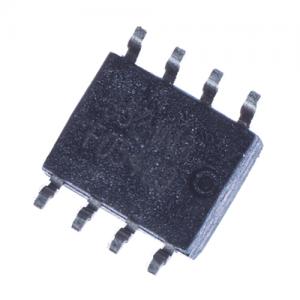

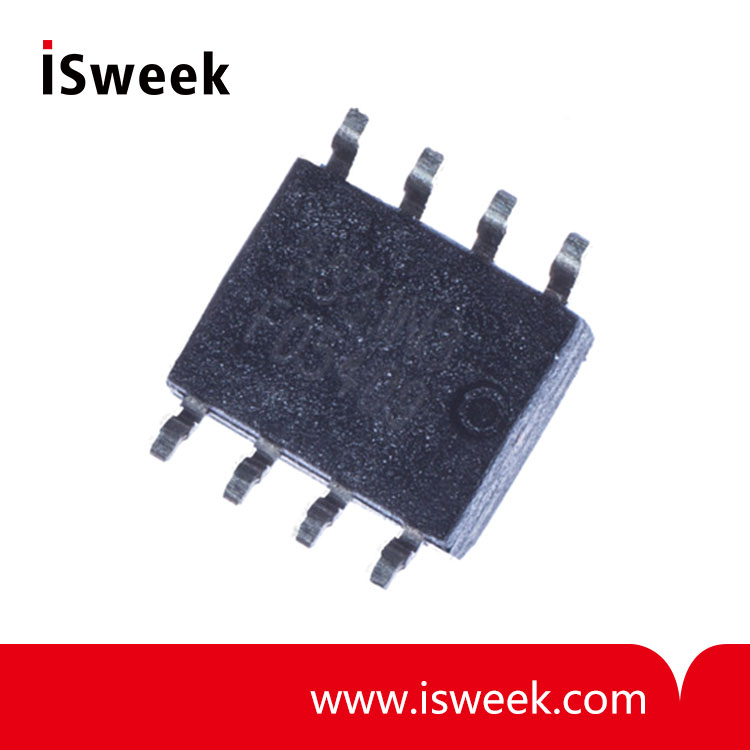

100 psi Absolute Gas Pressure Sensor with Bridge Output - SPD100ABsmd8

? Excitation Voltage: 5V
? Excitation Current: 1mA
? Pressure range(N2): 0 ~ 100psi
? Span (@100 PSI): 70 - 130mV
? Offset: ±30mV
? Linearity: ±0.1 %FS
? Operating temperature: -40~125°C
? Storage temperature: -50 ~ 135°C

  • Model Number: SPD100ABsmd8
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 100 psi Absolute Gas Pressure Sensor with Bridge Output
  • 100 psi Absolute Gas Pressure Sensor with Bridge Output
Mouse over image to zoom
Share:

Product Specification

SPD100ABsmd8 Pressure Sensor

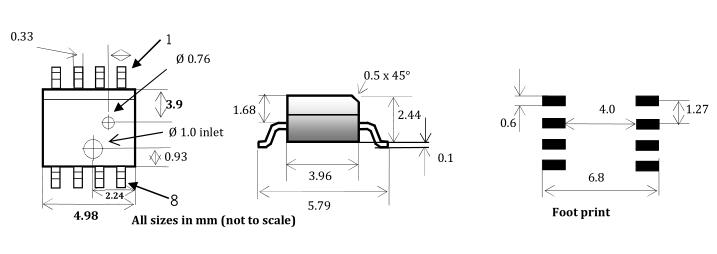

Gas Pressure Sensor For Absolute Type Measurement IN SO8
The SPD100ABsmd8 series SPD Absolute Pressure sensors are designed for gas pressure sensitive applications and are encapsulated in a miniature Smd8-pins package. This sensor provides a low-cost solution for high volume applications. Due to automatic production price is very low and nearby the price of a bare die without the need for the customer to handle dies by bonding, etc. Other pressure ranges on request available.

SPD100ABsmd8 Absolute Gas Pressure Sensor Electrical Characteristics

(measured @5V exc. voltage and 25 °C, with nitrogen)

Parameter

 Min

 Typ

 Max

Units

Excitation Voltage



5



V

Excitation Current

-

1



mA

Pressure range(N2)

0



100

psi

Span (@100 PSI)

70

100

130

mV

Offset

-30



30

mV

Temp Coeff. Span 1)

-17.5

-19.5

-21.5

 %FS/100°C

Temp Coeff. Offset 1)

-7



7

%FS/100°C

Linearity 2)



±0.1



%FS

Bridge impedance

4

5

6

K?

Operating temperature

-40



125

°C

Storage temperature

-50



135

°C

Over pressure





3x

FS


1) Temperature coefficient measured between 0 to 50°C
2) Measured Best Fit Straight Line
