100 psi Gauge Pressure Sensor with Bridge Output - SPD100GBsil
? Excitation voltage: 0~10V
? Excitation current: 1,5mA (typ)
? Pressure range: 0~100PSI
? Span: 70 - 130mV
? Offset: ±30mV
? Linearity: ±0,1%FS (typ)
? Operating temperature: -40~125°C
? Storage temperature: -40 ~ 125°C
- Model Number: SPD100GBsil
- Data Sheet:
- Quantity:
- - +
Product Specification
SPD100GBsil Pressure Sensor

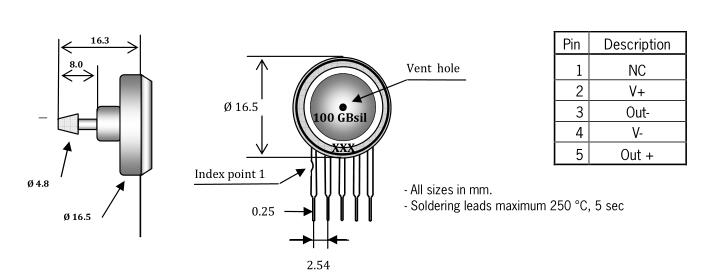

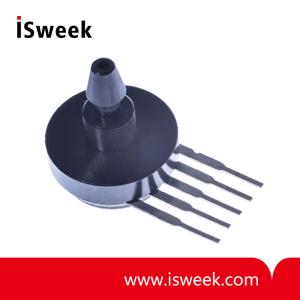

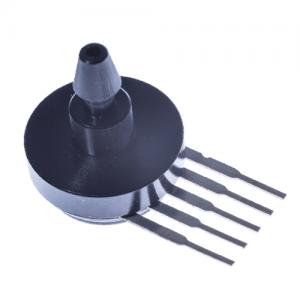

100 psi Gauge Type Pressure Sensor with Bridge Output
This Smartec pressure sensor has a non-compensated bridge output. The sensor has a range of 100 PSI (FS) and the bridge output is ratiometric to the power supply voltage. Other pressure ranges (from 0.3 to 100 psi) on request.
SPD100GBsil Gauge Pressure Sensor Electrical Characteristics
Performance characteristic @ Vcc = 5 V and 25 °C|
Parameter |
Min |
Typ |
Max |
Units |
|
Excitation voltage |
0 |
5 |
10 |
V |
|
Excitation current |
|
1,5 |
3 |
mA |
|
Pressure range |
0 |
|
100 |
PSI |
|
Span |
70 |
100 |
130 |
mV |
|
Offset |
-30 |
0 |
30 |
mV |
|
Linearity |
-0,3 |
±0,1 |
0,3 |
%FS |
|
Bridge Impedance |
4.0 |
5.0 |
6.0 |
K? |
|
TC Span (0-50°C) |
-27 |
-22 |
-17 |
%FS/100°C |
|
TC Offset (0-50°C) |
-7 |
|
7 |
%FS/100°C |
|
Pressure overload |
|
|
1,5 X |
|
|
Operating temperature |
-40 |
|
85 |
°C |
|
Storage temperature |
-40 |
|
125 |
°C |
Wetted material containing PA and silicon
