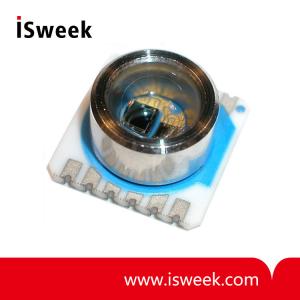

14 Bar Pressure Sensor Module with gel - MS5535-CM

Product Specification

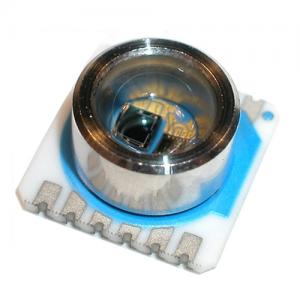

MS5535-CM 14 Bar Pressure Sensor Module Description
The MS5535C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16-bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

The MS5535C is fully software compatible to the previous versions (MS5535A and MS5535B). Compared to the previous versions, the ESD sensitivity has been improved to 4kV on all pins.

MS5535-CM 14 Bar Pressure Sensor Module Features
? 0 - 14 bar absolute pressure range
? 6 coefficients for software compensation stored on-chip
? Piezoresistive silicon micromachined sensor
? Integrated miniature pressure sensor 9 x 9 mm
? 16 Bit ADC
? 3-wire serial interface
? 1 system clock line (32.768 kHz)
? Low voltage and low power consumption
? Supply voltage 2.2 V to 3.6 V
? Low supply current
? -40°C to +125°C operation temperature
? No external components required
? 16 Bit ADC resolution pressure measurement and control systems

MS5535-CM 14 Bar Pressure Sensor Module Application
? Mobile water depth measurement systems
? Diving computers and divers watches

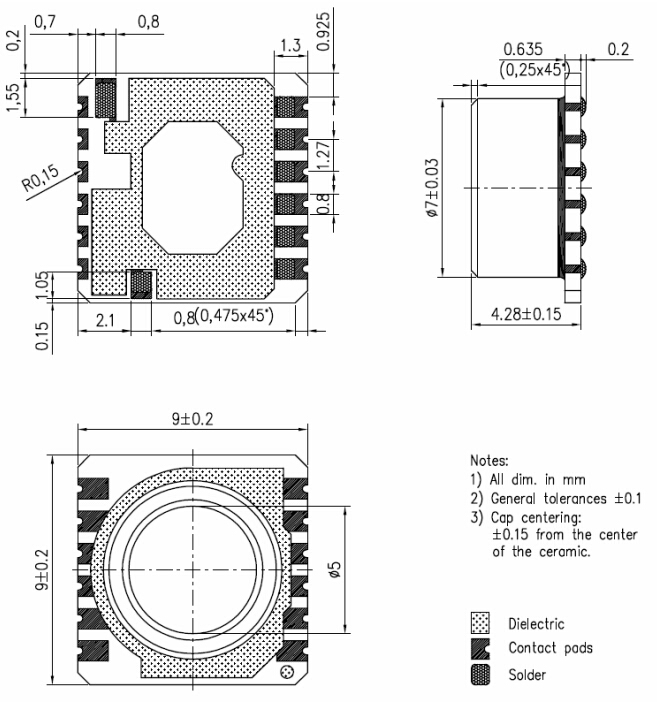

MS5535-CM 14 Bar Pressure Sensor Module Device Package Outlines
