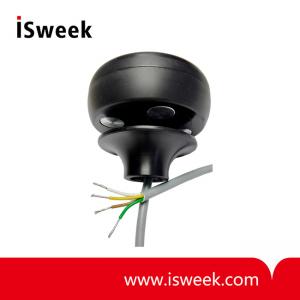

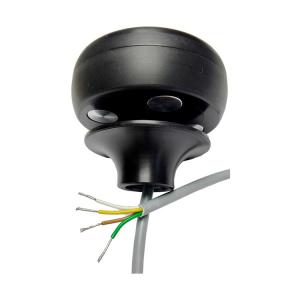

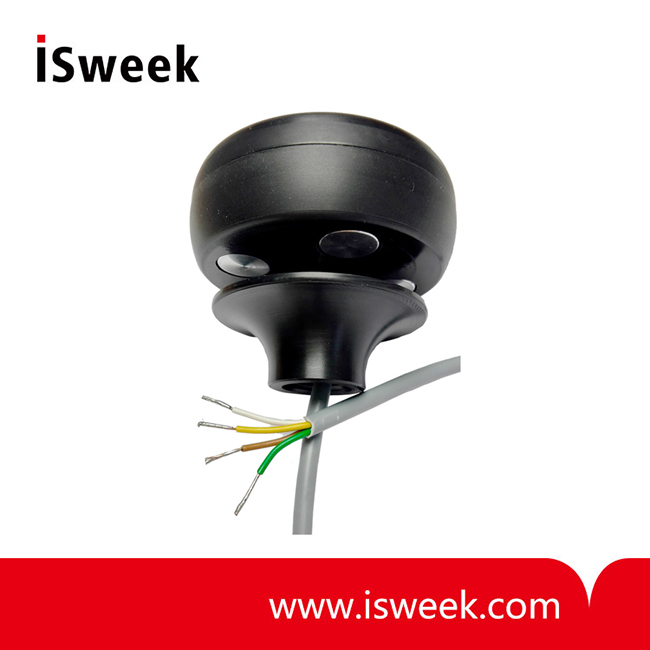

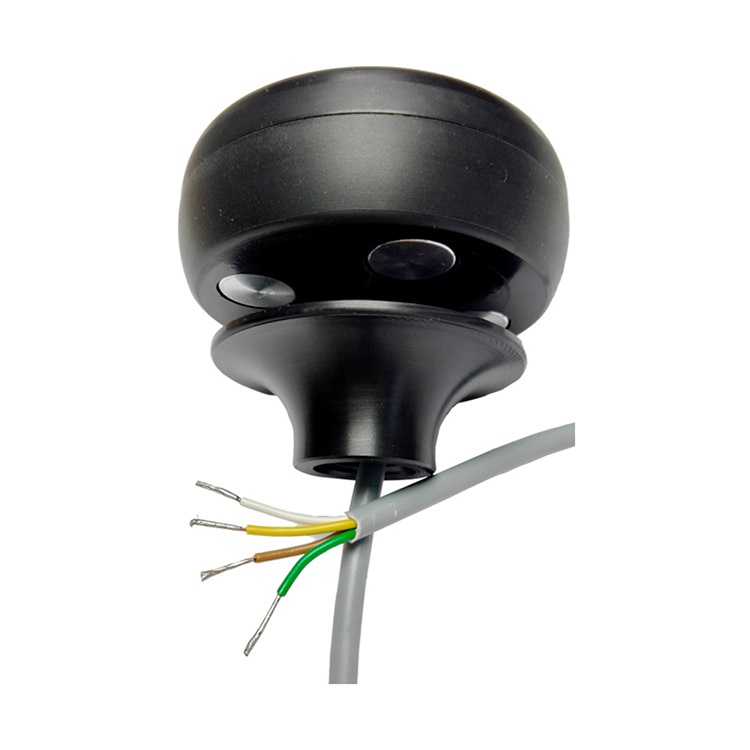

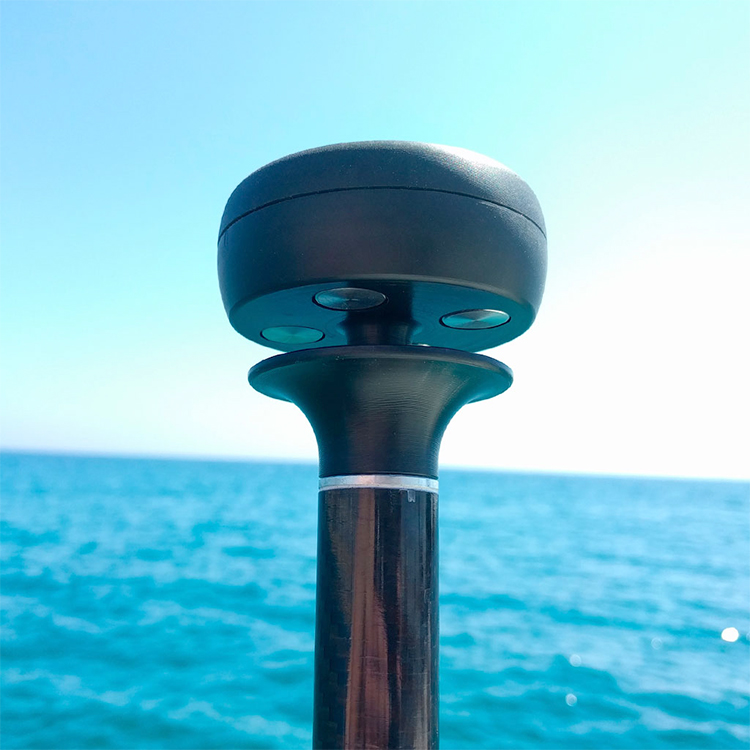

A Powerful Wired Ultrasonic Anemometer - Ultrasonic Wired

? Wind Speed? Range: 0 to 40 m/s
? Wind Speed? Resolution: ±0.1 m/s?
? Wind direction? Range: 0 - 360°
? Wind direction? Resolution: ±1
? Power?: VCC 5V - 24V
? IP Code?: NOT allow to be submerged fully or partially in water?

Model Number: Ultrasonic Wired
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Ultrasonic Wired (Ultrasonic Anemometer) Description
A powerful wired ultrasonic anemometer

Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.

Ultrasonic Wired (Ultrasonic Anemometer) Specifications

Wind Speed	Range: 0 to 40 m/s Resolution: ±0.1 m/s
Wind direction	Range: 0 - 360° Resolution: ±1
Sensors	Ultrasonic transducers (4x) Sample rate: 1, 4, 8 Hz Thermometer, Gyroscope, Accelerometer
Power	VCC 5V - 24V
Data output	Bluetooth 4.1 NMEA0183 (RS422, RS485), sentences selectables via Bluetooth Baud rate: 4800/38400 (8n1) bauds.
Firmware	Upgradable Current version: 0.44
IP Code	NOT allow to be submerged fully or partially in water
Dimensions	Diameter: 70 mm Height: 57 mm Cable: 1.5 meters
Weight	130 grams
