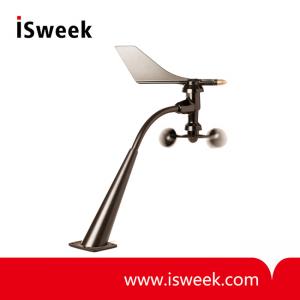

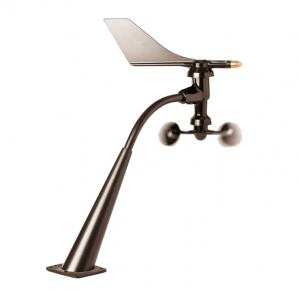

A Wireless (BLE) and Self-powered (Solar) Anemometer - CUPS 4.0

? Wind Speed Range: 0.5 to 45 m/s
? Wind Speed Resolution: ±1 m/s (±5% over 20 m/s)
? Wind Direction Display resolution: 1°
? Wind Direction Resolution: ±3°
? Operating Temp.: -20°C to +65°C
? Bluetooth Version: 4.1
? Bluetooth Range: Up to 50 m

Model Number: CUPS 4.0
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CUPS 4.0 A Wireless and Self-powered Anemometer Description
A wireless (BLE) and self-powered (solar) anemometer

Turn your tablet / smartphone into a wind instrument and data logger with CUPS 4.0.

With our free app Sailing Anemotracker (Android, iOS), receives the data and displays real / apparent wind speed / direction and many more variables.

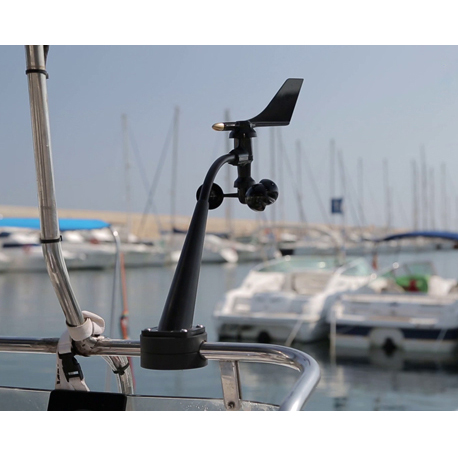

Lightweight and easy to install

CUPS 4.0 is really easy to install, so you can make it portable and mount it anywhere you wish. No more wires, save time and enjoy sailing right away.
Read our manual and check the technical information for helpful details about CUPS 4.0.

CUPS 4.0 A Wireless and Self-powered Anemometer Specifications

Wind Speed	Range: 0.5 to 45 m/s Resolution: ±1 m/s (±5% over 20 m/s)
Wind Direction	Display resolution: 1° Resolution: ±3°.
Operating Temp.	-20°C to +65°C
Autonomy	In dark Standby mode up to 1000h (estimated). Operation mode up to 2000h (estimated). Solar replenishment to full charge up to 100h.
Bluetooth	Version: 4.1 Range: Up to 50 m
Weight	325 gr (neither rail nor mast mount included)
Dimensions	33 cm high x 39 cm long. Cups diameter: 15 cm. Base: 6.8 x 6.8 cm.
