ACPC Series Prime Grade Miniature Pressure Sensors - 1 PSI-G-PRIME-MINI

? 0.3 PSI to 100 PSI Pressure Ranges
? Supply Voltage: 16 Vdc
? Common-mode pressure: 50 psig
? Lead Temperature (soldering 2-4 sec.): 270°C
? Compensated Temperature: 0 to 70 °C
? Operating Temperature: -25 to 85 °C
? Storage Temperature: -40 to 125 °C
? Humidity Limits: 0 to 95% RH (non condensing)

Model Number: 1 PSI-G-PRIME-MINI
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Miniature Pressure Sensors
Prime Grade Pressure Sensors

ACPC Series Prime Grade Pressure Sensors General Description
The Miniature series pressure sensors are based upon a proprietary technology to reduce the size of the sensor and yet maintain a high level of performance. This model provides a calibrated millivolt output with superior output characteristics. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The PRIME GRADE is the highest accuracy version of the millivolt output pressure sensors.

The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage.

ACPC Series Prime Grade Pressure Sensors Features
? 0 to 0.3 PSI to 0 to 100 PSI Pressure Ranges
? Highest accuracy version
? Temperature Compensated
? Calibrated Zero and Span

ACPC Series Prime Grade Pressure Sensors Applications
? Medical Instrumentation
? Environmental Controls
? HVAC

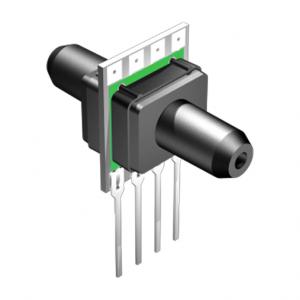

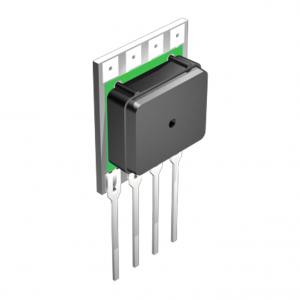

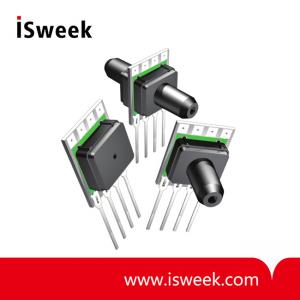

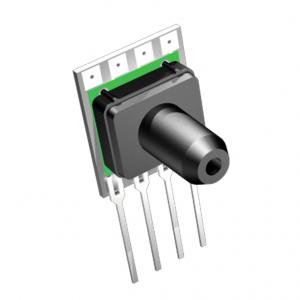

ACPC Series Prime Grade Miniature Pressure Sensors

Pressure Sensor Characteristics Maximum Ratings		Environmental Specifications
Supply Voltage, Vs	16 Vdc	Compensated Temperature	0 to 70 °C
Common-mode pressure	50 psig	Operating Temperature	-25 to 85 °C
Lead Temperature (soldering 2-4 sec.)	270°C	Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

ACPC Series Prime Grade Pressure Sensors Standard Pressure Ranges

No Prssure Port: CFNS Part Number	Single Pressure Port: CPNS Part Number	Dual Pressure Port: CPPS Part Number	Operating Pressure	Proof Pressure
0.3 PSI-G-PRIME-MINI	0.3 PSI-GF-PRIME-MINI	0.3 PSI-D-PRIME-MINI	0 to 0.3 PSI	3 PSI
10 INCH-G-PRIME-MINI	10 INCH-GF-PRIME-MINI	10 INCH-D-PRIME-MINI	0 to 10 inH2O	5 PSI
1 PSI-G-PRIME-MINI	1 PSI-GF-PRIME-MINI	1 PSI-D-PRIME-MINI	0 to 1 PSI	10 PSI
5 PSI-G-PRIME-MINI	5 PSI-GF-PRIME-MINI	5 PSI-D-PRIME-MINI	0 to 5 PSI	20 PSI
15 PSI-A-PRIME-MINI	15 PSI-AF-PRIME-MINI		0 to 15 PSIA	60 PSIA
15 PSI-G-PRIME-MINI	15 PSI-GF-PRIME-MINI	15 PSI-D-PRIME-MINI	0 to 15 PSI	60 PSI
30 PSI-A-PRIME-MINI	30 PSI-AF-PRIME-MINI		0 to 30 PSIA	60 PSIA
30 PSI-G-PRIME-MINI	30 PSI-GF-PRIME-MINI	30 PSI-D-PRIME-MINI	0 to 30 PSI	60 PSI
100 PSI-A-PRIME-MINI	100 PSI-AF-PRIME-MINI		0 to 100 PSIA	150 PSIA
100 PSI-G-PRIME-MINI	100 PSI-GF-PRIME-MINI		0 to 100 PSI	150 PSI
