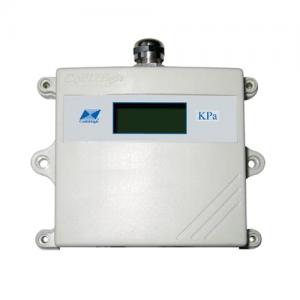

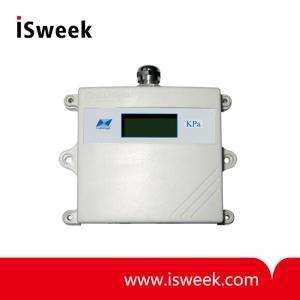

Atmospheric Pressure Transmitter - JQYB
? Measuring range: 0～110kPa
? Power supply: DC 24V (12V～32V)
? Accuracy: ± 0.25％F.S
? Medium temperature: -10°C～50°C
? Environment temperature: -10°C～50°C
? Response time: ≤ 50ms
? Hysteresis and repeatability: ± 0.2％F.S
? Nonlinear: ± 0.2％F.S
- Model Number: JQYB
- Quantity:
- - +
Product Specification
JQYB Atmospheric Pressure Transmitter Characteristic
? Intelligent digital circuit, atmospheric pressure automatically correct temperature drift with the temperature change
? Three prevent design: prevent surge voltage, polarity reverse and electromagnetic interference
? LCD more information liquid crystal display
? A variety ways of output like voltage, current,network and so on
JQYB Atmospheric Pressure Transmitter Parameters
| Measuring range | 0～110kPa |
| Power supply | DC 24V (12V～32V) |
| Load capacity | current mode ≤500Ω |
| voltage mode ≥3kΩ | |
| Accuracy | ± 0.25％F.S (when the temperature is 23±2°C and a standard atmospheric pressure); ± 0.5％F.S |
| Medium temperature | -10°C～50°C |
| Environment temperature | -10°C～50°C |
| Response time | ≤ 50ms |
| Hysteresis and repeatability | ± 0.2％F.S |
| Long-term stability | ± 0.1％F.S/y |
| Nonlinear | ± 0.2％F.S |
| Thermal zero drift | ± 0.02％F.S/°C |
| Max working pressure | two times of range |
| Electrical connection | terminal |
| Measuring medium | air |
