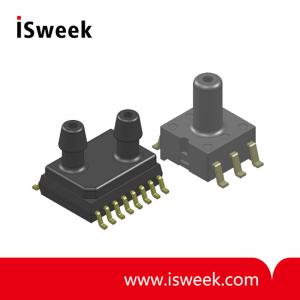

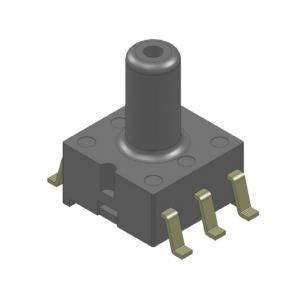

BLC Series Basic Low Pressure Compact Sensors - BLC-L01D-D1

? 0 to 30 inH2O and 15 PSIA Pressure Ranges
? Supply Voltage: 3 Vdc
? Common Mode Pressure: 5 psig
? Lead Temperature (soldering 2-4 sec.): 270 °C
? Operating Temperature: -25 to 85 °C
? Storage Temperature: -40 to 125 °C
? Humidity Limits: 0 to 95% RH (non condensing)

Model Number: BLC-L01D-D1
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

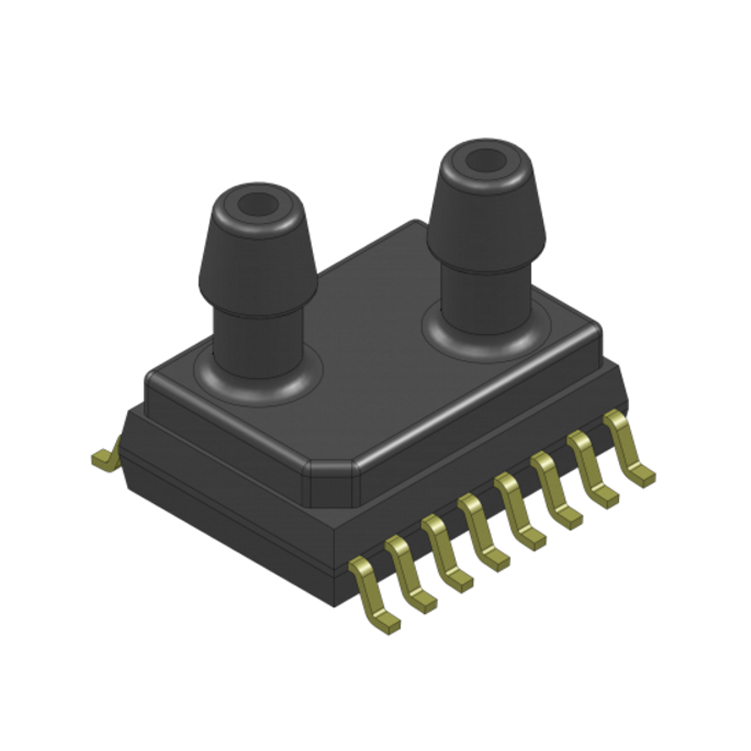

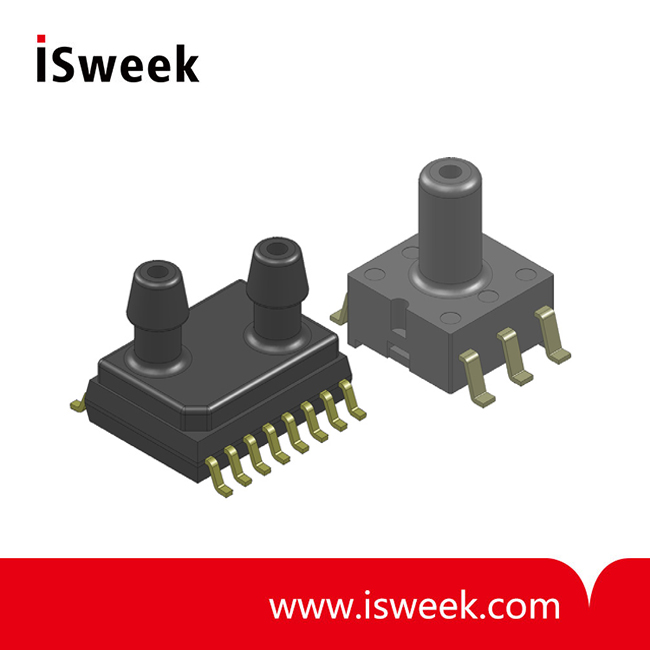

BLC Series Low Pressure Compact Sensors General Description
The BLC Series Basic Low Pressure Compact Sensor is based on All Sensors' CoBeam Technology. The device provides a high output signal at a low operating voltage and reduces the overall supply voltage while maintaining comparable output levels to traditional equivalent basic sensing elements. This lower supply voltage gives rise to improved warm-up shift while the CoBeam Technology itself reduces package stress susceptibility resulting in improved overall long term stability. The technology also vastly improves position sensitivity compared to conventional single die devices.

This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The output is also ratiometric to the supply voltage and is operable from 0.9 to 1.8 volts DC.

BLC Series Low Pressure Compact Sensors Features
? 0 to 1 inH2O to 0 to 30 inH2O and 15 PSIA Pressure Ranges
? uPower Low Supply Voltage (0.9V to 1.8V)
? 0.1% Linearity Typical
? Improved Front to Back Linearity
? Less Position Sensitivity
? Improved Warm-Up Shift Distribution
? Parylene Coating Available Upon Request

BLC Series Low Pressure Compact Sensors Applications
? Medical Instrumentation
? Environmental Controls
? HVAC
? Portable / Hand Held Devices

BLC Series Basic Low Pressure Compact Sensors

Pressure Sensor Maximum Ratings		Environmental Specifications
Supply Voltage (Vs)	3 Vdc	Operating Temperature	-25 to 85 °C
Common Mode Pressure	5 psig	Storage Temperature	-40 to 125 °C
Lead Temperature (soldering 2-4 sec.)	270 °C	Humidity Limits	0 to 95% RH (non condensing)

BLC Series Low Pressure Compact Sensors Standard Pressure Ranges

Device	Operating Range	Proof Pressure	Burst Pressure
BLC-L01D	±1 inH2O (250 Pa)	100 inH2O (25 KPa)	150 inH2O (37 KPa)
BLC-L05D	±5 inH2O (1,250 Pa)	200 inH2O (50 KPa)	300 inH2O (75 KPa)
BLC-L10D	±10 inH2O (2,500 Pa)	200 inH2O (50 KPa)	300 inH2O (75 KPa)
BLC-L20D	±20 inH2O (5,000 Pa)	200 inH2O (50 KPa)	500 inH2O (125 KPa)
BLC-L30D	±30 inH2O (7,500 Pa)	200 inH2O (50 KPa)	800 inH2O (200 KPa)
BLC-015A	0 to 15 PSIA (1 barA)	60 PSI (4 barA)	120 PSI (8 barA)

Performance Characteristics for BLC Series Low Pressure Compact Sensors
All parameters are measured at 1.8V excitation and room temperature unless otherwise specified. pressure measurements Are with positive pressure Applied port B (the only port for the single port configuration.)

Parameter	Min	Typ	Max	Units	Notes
Output Span (FSS)					4
L01D	4.5	8.0	11.5	mV
L05D	13.5	24.0	34.5	mV
L10D	18.0	32.0	46.0	mV
L20D	22.0	38.0	55.0	mV
L30D	25.0	42.0	60.0	mV
015A	70.0	95.0	120.0	mV
Offset Voltage
L01D, L05D, L10D, L20D, L30D (@ Zero Diff. Pressure)	-	-	±10.0	mV
015A (@ 0 PSIA)	-		±10.0	mV
Offset Temperature Shift (0°C-70°C)	-	±30.0	-	μ V/°C	1
Offset Warm-up Shift	-	±30.0	-	μ V	2, 6
Offset Position Sensitivity (1g)	-	±20.0	-	μ V	-
Linearity, Hysteresis Error	-	0.10	±0.50	%FSS	3
Response Time (10% to 90% Pressure Response)	-	100	-	μ S	-
Front to Back Linearity	-	0.25	-	%FSS	5
Temperature Effect on Resistance (0°C-70°C)	-	2800	-	ppm/°C	-
Temperature Effect on Span (0°C-70°C)	-	-2000	-	ppm/°C	-
Input Resistance	-	3.4	-	k Ω	-
Output Resistance	-	3.4	-	k Ω	-

BLC Series Low Pressure Compact Sensors How To Order
Refer to Table 1 for configuring a standard base part number which includes the pressure range and package.
Example P/N with options: BLC-L01D-D1

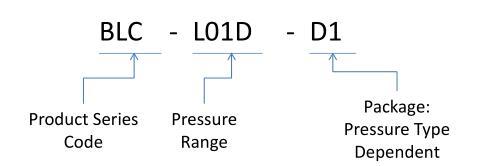

Table 1 - How to Configure a Part Number

Where:
Pressure Range (D1, D3, D4 Packages — Differential Only): L01D, L05D, L10D, L20D, L30D
Pressure Range (U2, U3 Package — Gage Only): L01D, L05D, L10D, L20D, L30D
Pressure Range (U4 Package — Absolute Only): 015A
