Bluetooth, Solar Powered and IPX8 Pocket-sized Ultrasonic Anemometer - Ultrasonic Portable
? Wind Speed? Range: 0 - 40 m/s (first units range: 0 - 25 m/s)
? Wind Speed? Resolution: ±0.1 m/s
? Wind direction? Range: 0 - 360°
? Wind direction? Resolution: ±1?
? Bluetooth? Version: 4.1 or beyond
? Bluetooth? Range: Up to 50 m
? IP Code?: IPX8 protection grade (10 meters)?
- Model Number: Ultrasonic Portable
- Data Sheet:
- Quantity:
- - +
Product Specification
Ultrasonic Portable (Ultrasonic Anemometer) Description

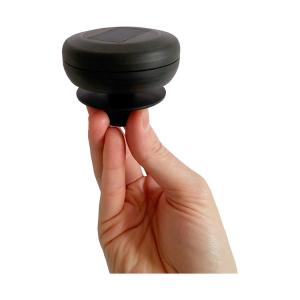

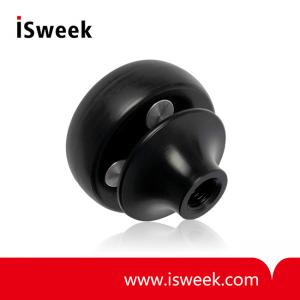

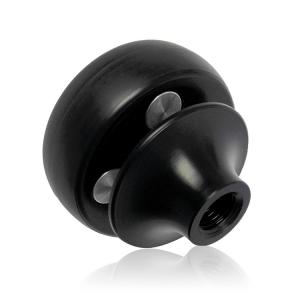

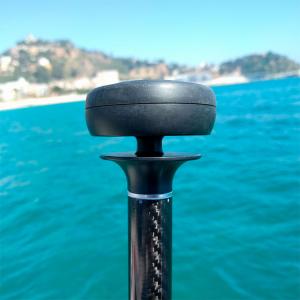

Bluetooth, solar powered and IPX8 pocket-sized ultrasonic anemometer
This self powered bluetooth 4.1 ultrasonic windmeter stays on for 29 days and 1 year without sun.
Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.
Ultrasonic Portable (Ultrasonic Anemometer) Specifications
|
Wind Speed |
Range: 0 - 40 m/s (first units range: 0 - 25 m/s) Resolution: ±0.1 m/s |
|
Wind direction |
Range: 0 - 360° Resolution: ±1 |
|
Sensors |
Ultrasonic transducers (4x) Sample rate: 1, 4, 8 Hz Thermometer, Gyroscope, Accelerometer |
|
Power |
Solar panel, internal battery, automatic power management Autonomy with no sunlight: in sleep mode up to 1 year, while measuring up to ~30 days |
|
Bluetooth |
Version: 4.1 or beyond Range: Up to 50 m |
|
Firmware |
Upgradable Current version: 0.52 |
|
IP Code |
IPX8 protection grade (10 meters) |
|
Dimensions |
Diameter: 70 mm Height: 57 mm |
|
Weight |
135 grams |
|
Easy mount |
16 mm (M16x2) female thread |
