Differential Pressure Sensor - MDM290

Product Specification

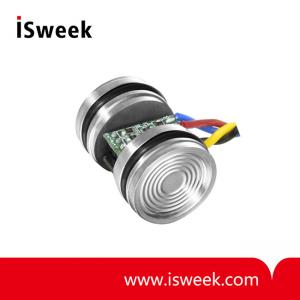

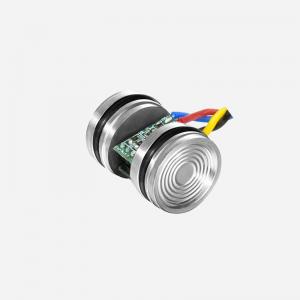

MDM290 Differential Pressure Sensor Introduction：

    MDM290 piezoresistive differential pressure sensor is OEM differential pressure sensor with stainless steel isolated diaphragm. It has integrated construction, high static pressure, high stablity and good reliability. The high and low pressure sides are protected by isolated diaphragm. It can be used for measuring corrosive and conductive fluid media. The measured differential pressure is transmitted onto the die through the diaphragm and filling silicon oil so that the sensor could measure differential pressure precisely. The sensor is tested automatically, and compensated zero and temperature performance with provided resistors. The installation dimension is consistent with general products which makes the sensor has a good interchangeability. It is widely used for industrial process control and differential pressure measure fields, etc.

MDM290 Differential Pressure Sensor Electric Performance：

? Power supply: ≤2.0mA DC; ≤10V DC

? Electrical connection: 100mm silicon rubber flexible wires

? Common mode voltage input: 50% of input (typ.)

? Input impedance: 3kΩ ~ 8kΩ

? Output impedance: 3.5kΩ ~ 6kΩ

? Response (10% ~ 90%): <1ms

? Insulation resistor: 100MΩ, 100VDC

? Overpressure: refer to Order Guide

? Max. static pressure: 20MPa

? Zero drift/static pressure: ≤0.5mV/MPa

MDM290 Differential Pressure Sensor Electric Features：

? Pressure range: 0kPa ~ 35kPa…3.5MPa

? Constant current/constant voltage power supply

? Isolated construction, possible to various fluid media

? OEM differential pressure sensor

? Stainless steel 316L

? High static pressure 20MPa

? 1.5 times overpressure

MDM290 Differential Pressure Sensor Application：

? Industrial process control

? Differential pressure measurement

? Gas, liquid pressure measure

? Pressure checking meter

? Pressure calibrator

? Ventura and eddy-current flow meter

MDM290 Differential Pressure Sensor Specification：
