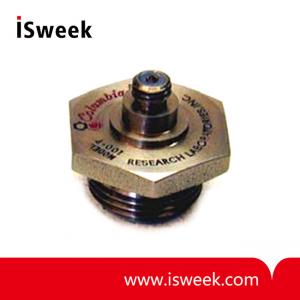

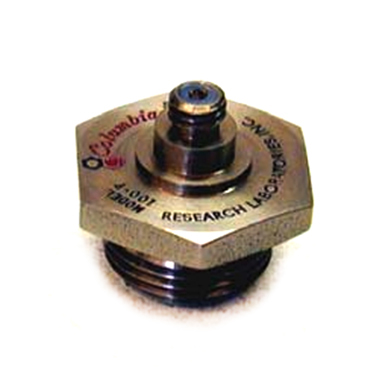

Dynamic Pressure Sensor - 100-P

? Fast Pressure Variations, Surges & Dynamic Blasts
? Very Low & High Pressure
? Small Size / Lightweight
? Low Cost
? Charge Sensitivity: 150 pC/psi
? Pressure Range?: 0.005 to 5,000 psi?
? Frequency Response: 2 to 12,000 Hz

Model Number: 100-P
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

100-P Dynamic Pressure Sensor Description

The Model 100-P High Intensity Acoustic Sensor (Microphone) is designed for measuring exceptionally wide pressure ranges in applications requiring fast rise times and broad frequency response. This sensor is extremely sensitive allowing very low pressure measurements to 0.005 psi as well as high pressure transient measurements to 5,000 psi at temperatures up to +150 Degrees C.

The Model 100-P sensor is small, lightweight and very ruggedly constructed with a stainless steel case, O-ring seal and flush diaphragm. Its small size, broad frequency response and low cost designates this unit an excellent choice for a wide range of applications.

100-P Dynamic Pressure Sensor Features
? Fast Pressure Variations, Surges & Dynamic Blasts
? Very Low & High Pressure
? Small Size / Lightweight
? Low Cost

100-P Dynamic Pressure Sensor Specifications

Transfer / Electrical
Charge Sensitivity	150 pC/psi
Pressure Range	0.005 to 5,000 psi
Pressure Overload (without damage)	10,000 psi Max.
Frequency Response	2 to 12,000 Hz
Resonant Frequency	60 KHz
Amplitude Linearity	+/-2%
Capacitance	500 pF
Output Resistance	1 x 10¹¹ Ohms
Grounding	Case Grounded
Environmental
Temperature Range (Less than +/-10% Variation)	-65 to +300 Deg F (-54 to +150 Deg C)
Humidity ¹	0 To 100% R.H.
Physical
Size	0.75 In. Hex. x 0.465 In. H (19 mm Hex x 11.8 mm H)
Weight	0.55 Oz (15.5 Gm)
Material Body & Diaphragm	Type 316 Stainless Steel
Electrical Interface	#10-32 Coaxial Connector
Mounting	9/16-24 Straight Thread
