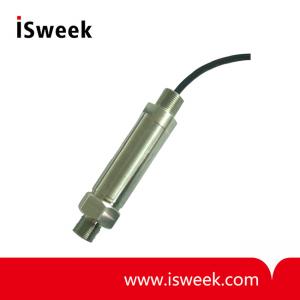

Explosion Proof Pressure Transmitter - JYB-KGH

? ?Measuring range: any range within 0~20MPa
? ?Power supply: DC 24V (12V~32V)
? ?Medium temperature: -20°C~60°C
? ?Environment temperature: -20°C~60°C
? ?Response time: ≤ 50ms
? ?Hysteresis and repeatability: ± 0.2%F.S
? ?Nonlinear: ± 0.2%F.S

  • Model Number: JYB-KGH
Quantity:
- +

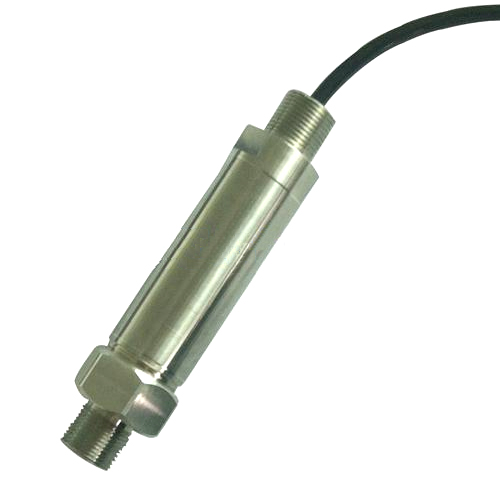

  • Explosion Proof Pressure Transmitter
  • Explosion Proof Pressure Transmitter
Mouse over image to zoom
Share:

Product Specification

JYB-KGH Explosion Proof Pressure Transmitter Characteristic
? Imported diffusion silicon core , suitable for  precision measurement of different medium and different temperature stress
? Explosive-proof design, full stainless steel laser welding, anticorrosive, shockproof, waterproof
? Through electrical equipment thermal stability and hot and humid experiment of class one
? Strong resistance of overload ability, impact and interference
? Reverse polarity, anti surge, and over-voltage over-current protection
? Long working life, high reliability
? Coal mining explosive-proof  certification

JYB-KGH Explosion Proof Pressure Transmitter Use
Methane and coal mine's pressure measurement; pressure system control of mine fan, diesel locomotive, ventilation tunnel, mine pumping station equipment and so on; used for high purity hydrogen or containing a high percentage of hydrogen mixture gas

JYB-KGH Explosion Proof Pressure Transmitter Parameters

Measuring range any range within 0~20MPa, 5kPa is the smallest range
Power supply DC 24V (12V~32V)
Load capacity current mode ≤500Ω (DC 24V)
voltage mode ≥3KΩ
Accuracy class grade 0.2 (range from 70kPa to 5MPa)
grade 0.5 (range from 5kPa to 70kPa; 5 MPa to 20 MPa)
Medium temperature -20°C~60°C
Environment temperature -20°C~60°C
Response time ≤ 50ms
Hysteresis and repeatability ± 0.2%F.S
Long-term stability ± 0.5%F.S/y
Nonlinear ± 0.2%F.S
Over load pressure two times of range
Electrical connection cable
Process connection M20 x 1.5  and others
The external parts material Ordinary stainless steel/316stainless steel
Ex mark ExdI Mb
Ex No. CNEX13.2772
