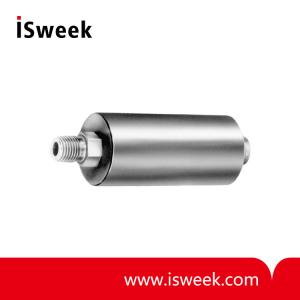

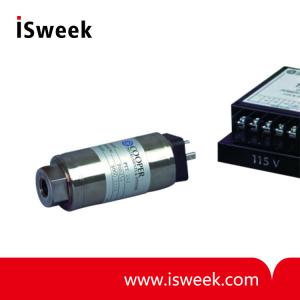

Gage/Absolute Pressure Transmitter - PTT 240 / PTT 242

? PTT 240 Pressure Ranges: 2 psi to 20,000 psi
? PTT 242 Pressure Ranges: 5 psi to 10,000 psi
? PTT 240 Accuracy: 0.1%F.S.
? PTT 242 Accuracy: 0.25%F.S.
? Temperature Range: 60? to 160?F
? 4-20 mA Output
? Stainless Steel

Model Number: PTT 240 / PTT 242
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PTT 240 / PTT 242 Gage/Absolute Pressure Transmitter Description
The PTT 240 and PTT 242 are two wire transmitters offering stainless steel construction, allowing them to be used in the harshest working environments. Both models offer two wire 4-20 ma output and have zero and span adjustments. The PTT 242 offers a wide range of electrical connectors with DIN-type as standard. This connector allows for flexibility to use any cable size between 4.5 mm and 14 mm or utilize a 1/2 NPT conduit fitting. It has the advantage of being a solderless and water resistant connection as well as allowing the user to turn connector in any four directions (90o increments). The PTT 240 and PTT 242 are ideal for applications including bulk liquid inventory control, steam management and other power plant applications.

PTT 240 / PTT 242 Gage/Absolute Pressure Transmitter Features
? 4-20 mA Output
? Stainless Steel
? Accuracy 0.1% to 0.25%

PTT 240 - GAGE/ABSOLUTE PRESSURE TRANSMITTER

PTT 240 Gage/Absolute Pressure Transmitter Specifications

Pressure Ranges	2 psi to 20,000 psi
Accuracy	± 0.1% F.S.
Material	Stainless Steel
Temperature Range	60? to 160?F
Output	4-20 mA
Load Resistance	500 ohms w/supply voltage 20 Vdc and up
Excitation	15 Vdc to 32 Vdc
Safe Overload	50% Over Capacity
Pressure Ports	1/4-18 NPT
Cable	As Required - mating conn. not incl. (PTO6A-10-6S)

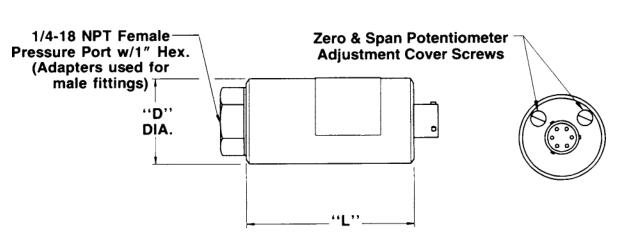

AVAILABLE RANGES	D"	L"
2; 5; 10; 15; 25; 50; 75; 100; 150 psi
200; 300; 500; 750; 1000 psi	1.50	2.30
1500 psi	1.50	2.24
2000; 3000; 5000; 7500; 10,000 psi	1.50	3.00
20,000 psi	1.50	3.085

PTT 242 - GAGE/ABSOLUTE PRESSURE TRANSMITTER

PTT 242 Gage/Absolute Pressure Transmitter Specifications

Pressure Ranges	5 psi to 10,000 psi
Accuracy	± 0.25% F.S.
Material	Stainless Steel
Temperature Range	60? to 160? F
Output	4-20 mA
Load Resistance	500 ohms w/supply voltage 20 Vdc and up
Excitation	9 Vdc to 32 Vdc
Safe Overload	50% Over Capacity
Pressure Ports	1/4-18 NPT - Female
Cable	DIN Mating Connector Specify Cable Size

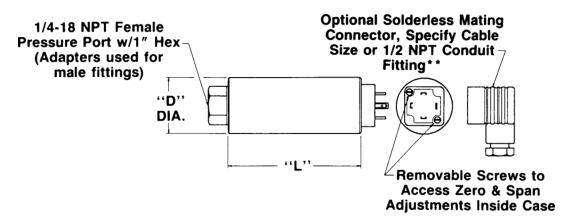

AVAILABLE RANGES	D"	L"
5; 15; 25; 50; 75; 100; 150 psi
200; 300; 500; 750; 1000 psi	1.50	2.60
1500 psi	1.50	3.30
2000; 3000; 5000; 7500; 10,000; 1psi	1.50	3.00
*Stocked ranges are in bold type
