Product Specification

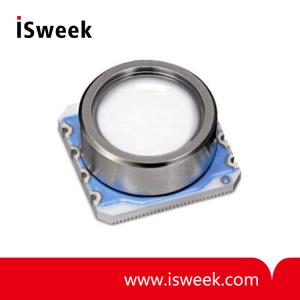

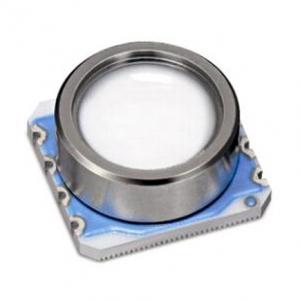

MS5803-14BA Pressure Sensor Module Description:

The Pressure Sensor Module MS5803-14BA is a new generation of high resolution pressure sensors with SPI and I2C bus interface. It is optimized for depth measurement systems with a water depth resolution of 1cm and below. The sensor module includes a high linear pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of a depth measurement systems and thermometer function without any additional sensor. The MS5803-14BA can be interfaced to any microcontroller. The communication protocol is simple, without the need to programming internal registers in the device. The gel protection and antimagnetic stainless steel cap protects against 30 bar overpressure waterproof. This new sensor module generation is based on leading MEMS technology and latest benefits from the Intersema’s proven experience and know-how in high volume manufacturing of pressure modules have been widely used for over a decade. This sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

MS5803-14BA Pressure Sensor Module Features
? High resolution 0.2 mbar
? Fast conversion down to 1 ms
? Low power, 1 μA (standby < 0.15 μA)
? Integrated digital pressure sensor (24 bit Σ ADC)
? Supply voltage 1.8 to 3.6 V
? Operating range: 0 to 14 bar, -40 to +85 °C
? I2C and SPI (Mode 0, 3)
? No external components (Internal oscillator)
? Excellent long term stability
? Hermetically sealable for outdoor devices

MS5803-14BA Pressure Sensor Module Applications
? Mobile water depth measurement systems
? Diving computers
? Adventure or multi-mode watches

MS5803-14BA Pressure Sensor Module Technical Data

MS5803-14BA Pressure Sensor Module Package Outline and Pin Configuration:
