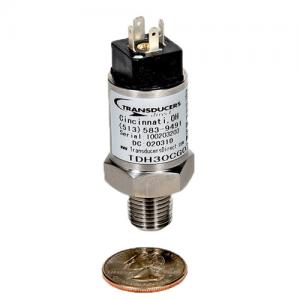

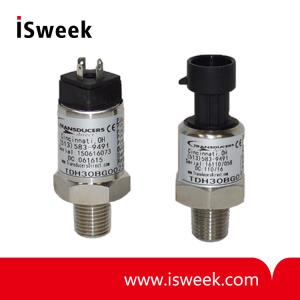

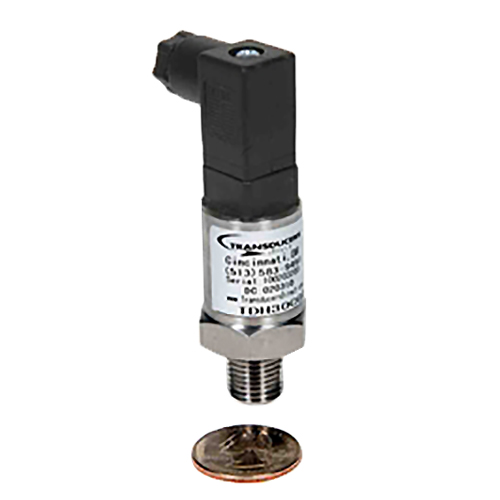

Low Cost OEM Pressure Transducer - TDH30 Series

? 3 to 10,000 psi Range
? Various Outputs
? Compact Design
? 316 Stainless steel Housing
? Low Cost
? Industrial 1% Accuracy
? Custom Outputs and Ranges Available
? OEM Tested and Approved
? Low power consumption

Model Number: TDH30 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TDH30 Series OEM Pressure Transducer DESCRIPTION
The TDH30 Series Pressure Transducer utilizes piezoresistance technology in an all stainless steel body. It is compact in size, has long term stability, ease of installation and is very economical as well as reliable.

The TDH30 sets a new price-performance standard for low cost, high volume commercial and industrial applications.

TDH30 Series OEM Pressure Transducer APPLICATIONS
? Hydraulic / Mobile Hydraulic
? Pneumatic Systems
? Food and Beverage Industry
? Refrigeration Systems
? Pumps and Compressors
? Energy and water management
? Construction and Agricultural Equipment

TDH30 Series OEM Pressure Transducer FEATURES
? 3 to 10,000 psi Range
? Various Outputs
? Compact Design
? 316 Stainless steel Housing
? Low Cost
? Industrial 1% Accuracy
? Custom Outputs and Ranges Available
? OEM Tested and Approved
? Low power consumption

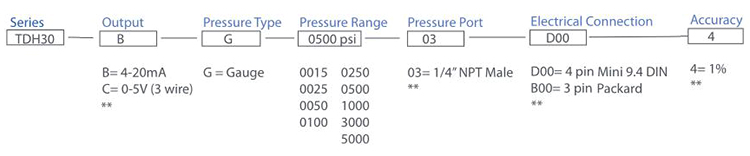

TDH30 Series OEM Pressure Transducer SPECIFICATIONS

Input
Supply Voltage	12-36 VDC
Pressure Range	3 to 10,000 psi
Proof Pressure	1.5 x full scale
Burst Pressure	3 x full scale
Fatigue Life	More than 4 million cycles
Performance @ 25°C (77°F)
Accuracy	1% full scale, BFSL
Stability	0.2% full scale
Compensated Temperatures	-10 to 75°C (14 to 167°F)
Operating Temperatures	-20 to 80°C (-4 to 176°F)
Zero and Span Offset Tolerance	1.5%
Current Consumption	Approx 3mA for voltage output, 22mA for current output (4-20mA)
Shock	50g, 11ms, 1/2 sine
Vibration	11g peak From 10 to 400Hz
Mechanical Configuration
Pressure Port	1/4 NPT (standard)
Electrical Connection	9.4 mini DIN, 3 pin Packard
Ingress Rating	IP65 with T-Direct standard 9.4 DIN cable, IP66 with T-Direct standard Packard cable
Housing	316 stainless steel
Diaphragm Mateial	3-75psi = 316 SS, >75-1600psi = ceramic, >1600-10,000 = 17-4 SS 316SS is available instead of ceramic upon request
Sealing Material	Neoprene
Approvals	CE
