Low Cost Pressure Transducer - PLC 105
? Pressure Ranges: 1 psig to 10,000 psig
? Accuracy: ±0.5% F.S.
? Temperature Range: 60? to 160? F
? Excitation: 10 Vdc
? Safe Overload: 50% Over Capacity
? Welded Stainless Steel
? Low Cost
? Quick Delivery
- Model Number: PLC 105
- Data Sheet:
- Quantity:
- - +
Product Specification

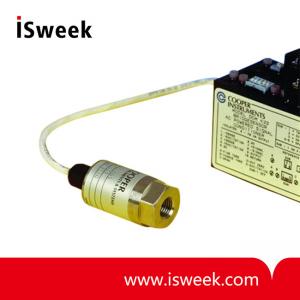

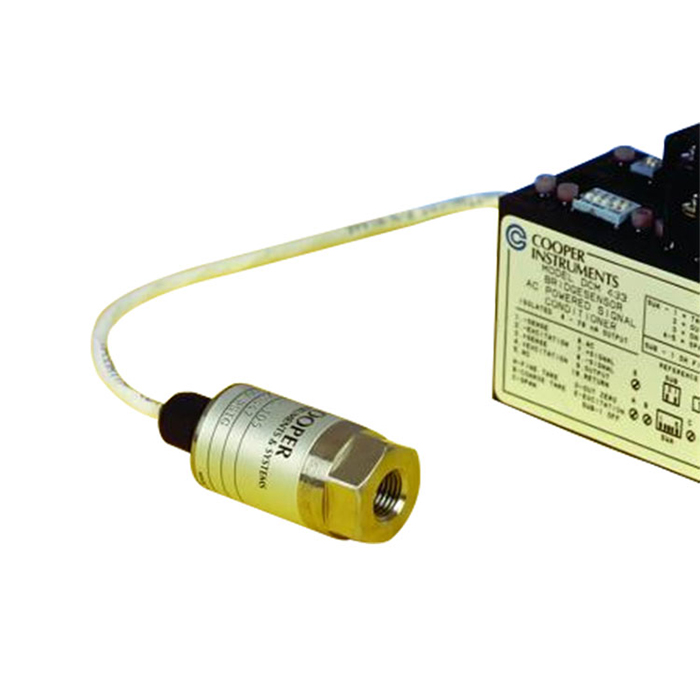

PLC 105 - Low Cost Pressure Transducer
The Model PLC 105 is low cost alternative pressure transducers offering good performance in high volume applications. Stainless steel construction provides durability to survive rugged environments. The PLC 105 offers a nominal 2 mv/v output. This transducer is able to handle both liquid and gas pressure with safe overloads to 50% of capacity.
PLC 105 Low Cost Pressure Transducer Feature
? Welded Stainless Steel
? Low Cost
? Quick Delivery
PLC 105 Low Cost Pressure Transducer Specifications
|
Pressure Ranges |
1 psig to 10,000 psig |
|
Accuracy |
±0.5% F.S. |
|
Material |
Stainless Steel |
|
Temperature Range |
60? to 160? F |
|
Output |
1 psi to 5 psi - 5mv/v 15 psi to 100 psi - 10mv/v 150 psi to 10,000 psi - 2 mv/v |
|
Bridge Rresistance |
1 psi to 100 psi - 5000 ohm 150 psi to 10,000 psi - 350 ohm |
|
Excitation |
10 Vdc |
|
Safe Overload |
50% Over Capacity |
|
Pressure Ports |
1/4-18 NPT |
|
Cable |
3 ft |
|

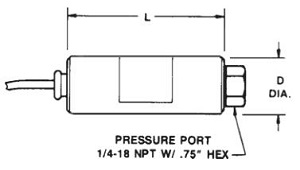

AVAILABLE RANGES |
D” |
L” |
H” |
|
1; 2.5; 5 |
1.125 |
2.26 |
1 hex |
|
15; 30; 50; 75; 100 |
1.125 |
2.23 |
1 hex |
|
150; 200; 300; 500; 750 |
1.125 |
2.00 |
.875 hex |
|
1000; 1500; 2000; 3000; 5000; 7500; 10,000 |
1.125 |
1.78 |
.750 hex |
