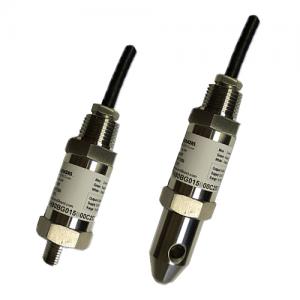

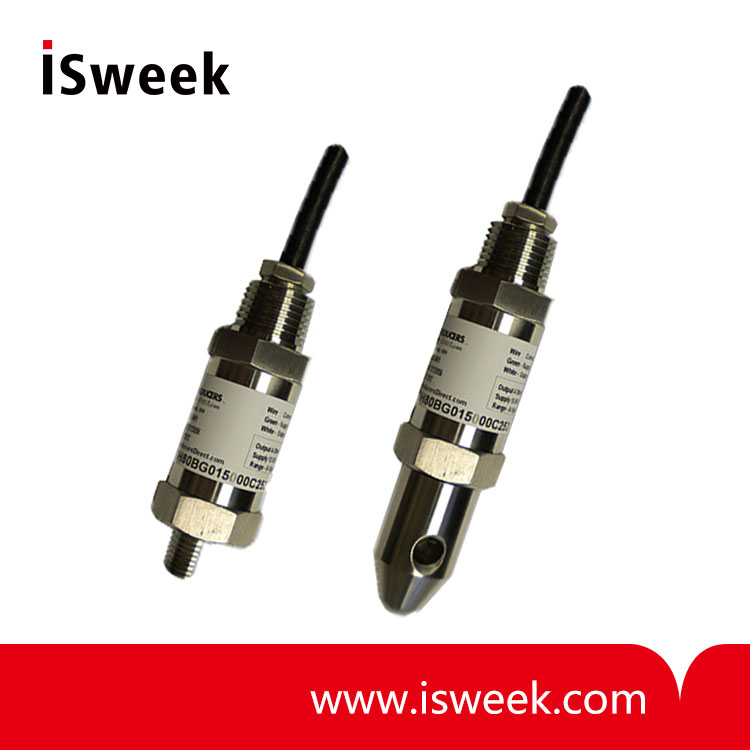

Low Cost Submersible Pressure Transducer - TDH80 Series
? Advanced piezoresistance technology
? All stainless steel construction
? Industry-standard 4-20mA output
? Pressure ranges 0-2.5, 0-10 and 0-15 PSIG (custom ranges available)
? Accuracy of 0.5%
? Long-term stability
? Nose cone or NPT thread available
- Quantity:
- - +
Product Specification
TDH80 Series Submersible Pressure Transducer FEATURES
? Advanced piezoresistance technology
? All stainless steel construction
? Industry-standard 4-20mA output
? Pressure ranges 0-2.5, 0-10 and 0-15 PSIG (custom ranges available)
? Accuracy of 0.5%
? Long-term stability
? Nose cone or NPT thread available
TDH80 Series Submersible Pressure Transducer SPECIFICATIONS
|
Performance @ 25°C (77°F) |
|
|
Accuracy |
±0.5% FS |
|
Stability |
<±0.2% FS/year, typical |
|
Over pressure protection |
1.5X Rated Pressure |
|
Burst Pressure |
3X minimum |
|
Pressure Cycles |
>4 Million |
|
Environmental Data |
|
|
Operating temp |
-20 to +80°C (-40 to +176°F) |
|
Compensated range |
-10 to 75°C (+14 to +167°F) |
|
Electrical Data |
|
|
Excitation |
12-36 Vdc |
|
Loop resistance @ 24 Vdc |
≤750 Ohm |
|
Zero offset |
<±1.0% of FS |
|
Span tolerance |
<±1.0% of FS |
|
Physical data |
|
|
Diaphragm material |
316SS |
|
Sealing material |
Fluoro Rubber |
|
Body material |
316SS |
|
Cable pull strength |
300 lb. |
|
Pressure connection |
Bullet-Nose, 1/4”NPT |
|
Electrical Connection |
Molded, vented submersible cable (Polyethylene outer jacket) |
