Product Specification

Miniature Amplified Low Pressure Sensors
Low Pressure (1 inH2O to 60 inH2O) Sensors

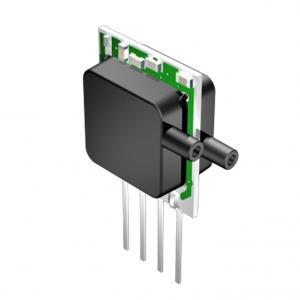

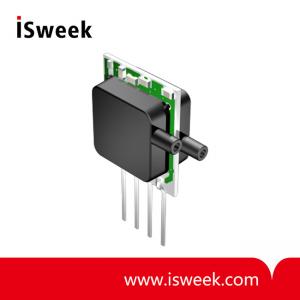

MAMP Series Prime Grade Amplified Low Pressure Sensors General Description
The MAMP series pressure sensors are based on a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.

MAMP Series Prime Grade Amplified Low Pressure Sensors Features
? 1 to 60 inH2O Pressure Ranges
? Matched pressure port volumes
? Temperature Compensated (-25 to 85 °C)
? Calibrated Zero and Span

MAMP Series Prime Grade Amplified Low Pressure Sensors Applications
? Medical Instrumentation
? Environmental Controls
? HVAC

MAMP Series Prime Grade Miniature Amplified Low Pressure Sensors
