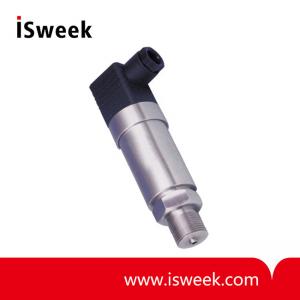

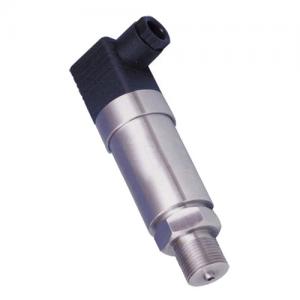

Marine Pressure and Level Transmitter - JYB-KB-H

? Level measurement: any range within 0～60m
? Pressure measurement: any range within 0～40MPa
? Power supply: DC 24V (12V～32V)
? Medium temperature: -20°C～60°C
? Environment temperature: -10°C～60°C
? Response time: ≤ 100ms
? Hysteresis and repeatability: ± 0.1％F.S
? Nonlinear: ± 0.2％F.S

Model Number: JYB-KB-H

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JYB-KB-H Marine Pressure and Level Transmitter Introduction
This product is designed for ship industry, and suitable for all kinds of cabin pressure, liquid level measurement, China classification society C C S authentication products.It has been widely used in ship industry.

JYB-KB-H Marine Pressure and Level Transmitter Characteristic
? Unique condensation waterproof design
? Excellent overload resistance and corrosion resistance
? Over-voltage and over-current protection circuit
? Anti surge voltage
? Reverse polarity protection
? High stability
? Strong anti-interference ability
? Widely practicability
? Installation simple
? Classification society certificate

JYB-KB-H Marine Pressure and Level Transmitter Parameters

measuring range	Level measurement: any range within 0～60m, 0.5m is the smallest range
measuring range	Pressure measurement: any range within 0～40MPa, 5kPa is the smallest range
Power supply	DC 24V (12V～32V)
Load capacity	current mode ≤500Ω (DC24V) voltage mode ≥3KΩ
Accuracy class (reference conditions Refers to the temperature at 23 + 2°C and a standard atmospheric pressure)	grade A:±0.25%F.S
	grade B: ±0.5%F.S
Medium temperature	-20°C～60°C
Environment temperature	-10°C～60°C
Response time	≤ 100ms
Hysteresis and repeatability	± 0.1％F.S
Long-term stability	± 0.1％F.S/y
Nonlinear	± 0.2％F.S
Thermal zero drift	± 0.03％F.S/°C
Max working pressure	two times of range
Electrical connection	standard Horsman/cable
Process connection	M20 x 1.5 outside thread (L except)
The external parts material	316L stainless steel
Shell material	316L stainless steel
IP grade	IP 68/IP 54
Measuring medium	oil, water, gas and other compatible with stainless steel medium
Intrinsic safety explosive protection	ExibⅡ CT6
