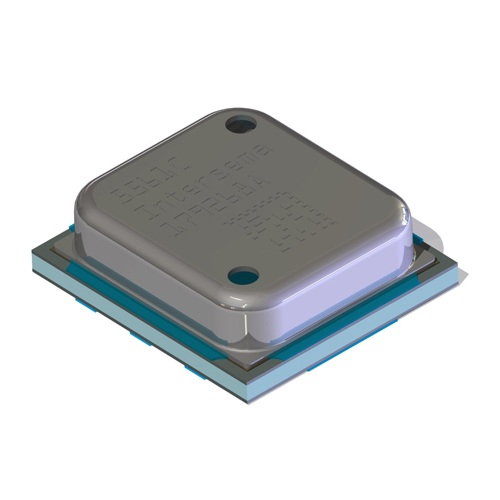

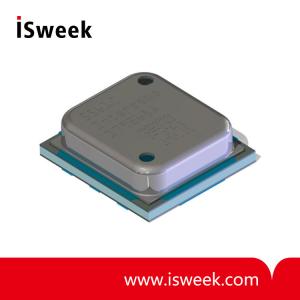

Micro Altimeter Pressure Sensor - MS5561C

Product Specification

MS5561C
Micro Altimeter

MS5561C Micro Altimeter Pressure Sensor Specifications
? 10 - 1100 mbar / 1 - 110 kPa absolute pressure range
? High accuracy temperature measurement
? Integrated miniature pressure sensor 4.75 x 4.25 mm
? Thin design of 1.6 mm
? Piezoresistive silicon micromachined sensor
? 6 coefficients for software compensation stored on-chip
? 16 Bit ADC, sigma delta converter
? 3-wire serial interface
? 1 system clock line (32.768 kHz)
? Low voltage and low power consumption

MS5561C Micro Altimeter Pressure Sensor Description
The MS5561C is a SMD-hybrid device including a precision piezo-resistive pressure sensor and an ADC-Interface IC. It uses a three-wire serial interface for communication. The module dimensions of 4.75 mm x 4.25 mm and a height of only 1.6 mm allows for up-to-date SMD design. It provides a 16 bit data word from a pressure and temperature dependent voltage. The MS5561 is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a micro-controller.

MS5561C Micro Altimeter Pressure Sensor Features
? Pressure resolution 0.1mBar
? Operating temperature -40°C to +85°C
? Supply voltage 2.2V to 3.6V
? Low supply current, typ. 4μA
? Standby current < 0.1μA
? Calibrated temperature and pressure sensor for 2nd order compensation
? ESD protected, HBM 4kV

MS5561C Micro Altimeter Pressure Sensor Applications:
? Mobile phones
? GPS receivers
? Altimeter applications
? Personal Navigation Devices (PND)
? Digital cameras with altimeter function

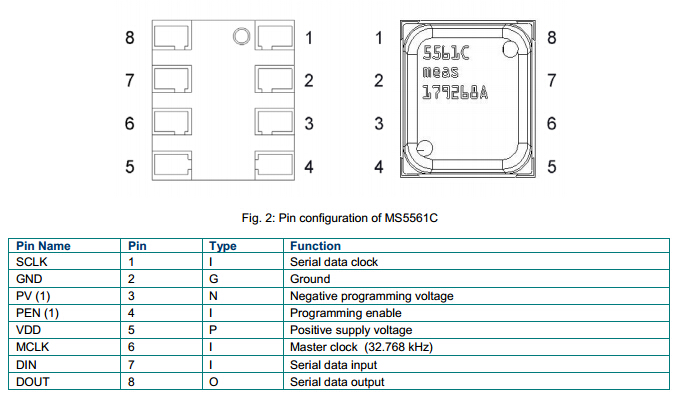

MS5561C Micro Altimeter Pressure Sensor Pin Configuration
