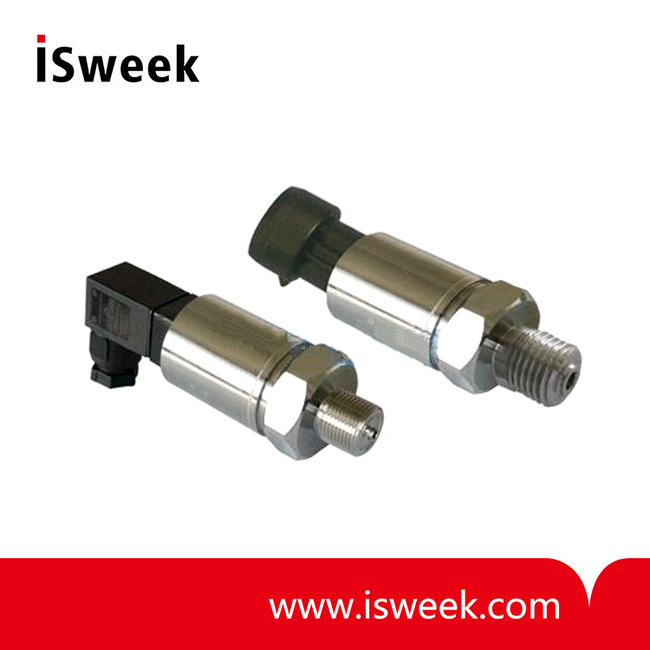

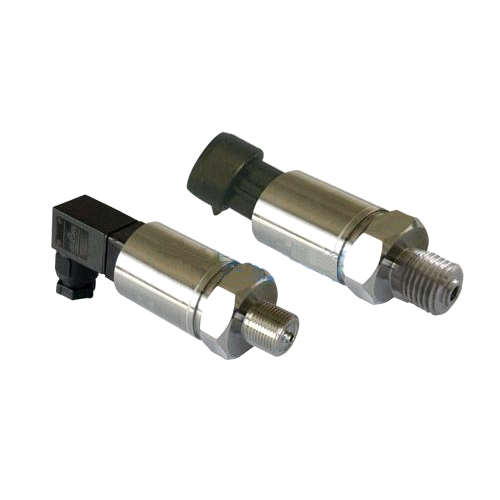

Mini and Low Cost Diffused Silicon Pressure Transmitter - JYB-KO-M

? Supply Voltage?: 18 to 30VDC or +4.5 to 5.0VDC?
? Operating Range?: 0.35Bar to 100Bar?
? Accuracy?: ±0.2%, ±0.5%, ±1.0% (25℃)?
? Pressure Response?: <200ms?
? Long Term Stability?:＜0.1% FS per year?
? Working Temperature Range?: -20 to 85℃?
? 4 to 20 mA output / 0~5VDC output

Model Number: JYB-KO-M
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JYB-KO-M Mini and Low Cost Pressure Transmitter Description
Model JYB-K M is a cost efficient general purpose gage-only diffused Silicon pressure transmitter. Each unit is constructed of welded stainless steel for durability in dry rugged environments. Both gas and liquid pressure overloads of up to 50% over capacity are safely accepted. The transmitter uses our proprietary current output with digital compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.

JYB-KO-M Mini and Low Cost Pressure Transmitter Features
? 0.0015 % FS/°F temperature effect
? 0.2%, 0.5 % or 1.0% accuracy
? 0.35 to 100 Bar range
? True gage or absolute
? 4 to 20 mA output / 0~5VDC output
? Isolated double wall construction
? Enhanced temperature stability
? ROHS and CE Certification

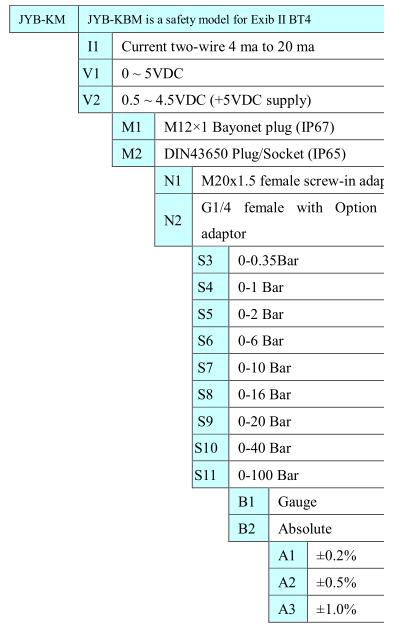

JYB-KO-M Mini and Low Cost Pressure Transmitter Specification

Pressure Measurement
Supply Voltage	18 to 30VDC or +4.5 to 5.0VDC
Operating Range	Any zero based full scale from 0.35Bar to 100Bar
Over Pressure	Three times for the full scale
Output Signal	Current two-wire 4-20mA (<500Ω); 0~5VDC 0r 0.5~4.5VDC(>10KΩ)
Pressure Media	Fluids compatible with 316 stainless steel and Hastelloy C276 (NACE compatible grades)
Performance Specifications
Accuracy	±0.2%, ±0.5%, ±1.0% (25℃)
Pressure Response	<200ms
Long Term Stability	<0.1% FS per year
Temperature Range	Compensation form 0 to 60℃ Working from -20 to 85℃
Temperature Effects	Max 1.0% FS typical over 0 to 60℃ Max 2.0% FS typical over -20 to 85℃
Physical Connection
Pressure Connection	G1/4 female with Option B screw-in adaptor
Electrical Connection	M12 x 1 Bayonet plug (IP67) DIN43650 Plug/Socket (IP65)
