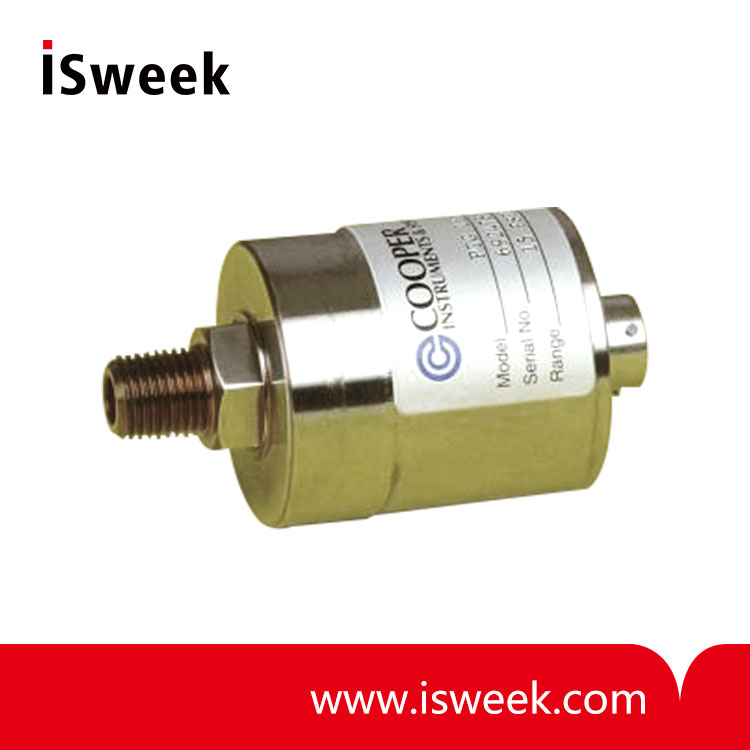

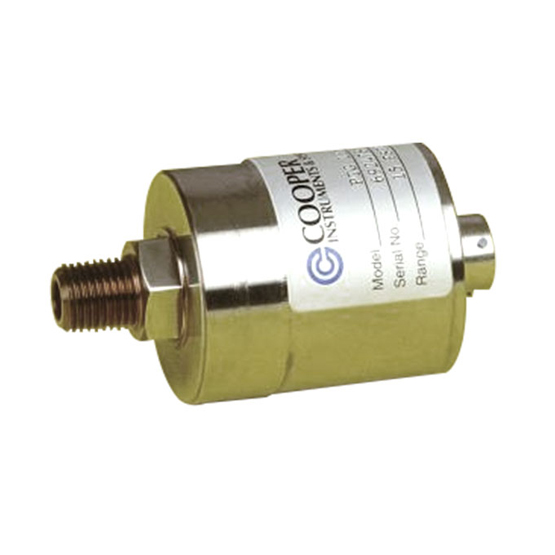

Precision Pressure Transducer - PTG 135

? Pressure Ranges: 1 psig to 60,000 psig?
? 0.1% Full Scale Accuracy
? Material: Stainless Steel?
? Temperature Range: 60? to 160?F
? Output?: 2mV/V ±0.25%?
? Hermetically Sealed
? High Accuracy
? Welded Diaphragm
? Optional Amplified Output

Model Number: PTG 135
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PTG 135 - Precision Pressure Transducer

The model PTG 135 (gage pressure) is designed for rugged industrial applications requiring high accuracy pressure measurements. These transducers are designed with 4 arm 350 ohm strain gage bridge and have welded stainless steel construction. Using a "True Gage" design, the PTG 135 utilizes a second welded diaphragm that hermetically seals the strain gage circuitry which allows the transducer to reference atmospheric pressure.

PTG 135 Precision Pressure Transducer Features
? Hermetically Sealed
? High Accuracy
? Welded Diaphragm
? Optional Amplified Output
? 0.1% Full Scale Accuracy

PTG 135 Precision Pressure Transducer Specifications

Pressure Ranges	1 psig to 60,000 psig
Accuracy	± .1% F.S.
Material	Stainless Steel
Temperature Range	60? to 160? F
Output	2mV/V ±0.25%
Output Resistance	350 ±5 Ohms
Bridge Rresistance	350 ohm
Excitation	10 V ac-dc (15V max)
Safe Overload	25% to 50% Over Capacity
Pressure Ports	1 to 10,000 psia see chart 15,000 psia to 60,000 psia - 9/16-18UNF per AE F250-C for 1/4 OD High Pressure Tubing
Cable	As Required - mating conn. not incl. (PTO6A-10-6S)

PTG 135 PRESSURE RANGES	D"	L"
1; 2; 5 psig	2.25	1.81
10; 15 psig	1.75	2.00
25; 50; 75; 100; 150; 200; 300; 500 psig	1.50	2.01
750; 1000; 1500, 2000, 3000; 5000 psig	1.50	2.35
7500; 10,000 psig	1.50	2.39
15,000; 20,000; 30,000; 50,000; 60,000 psig	1.50	2.21
