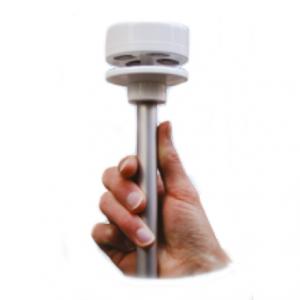

Ultrasonic Wind Speed Sensor - SONIC-ANEMO-SDI

Output rate: 2 Hz / 30 Hz measurement
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1°
Power supply: 2.7 V to 35 V DC
Electrical consumption: 2.9 mA Avg. @ 12 V
Op. temp. without icing: -15° C to +55° C

  • Model Number: SONIC-ANEMO-SDI
  • Data Sheet: Date Sheet File
Quantity:
- +

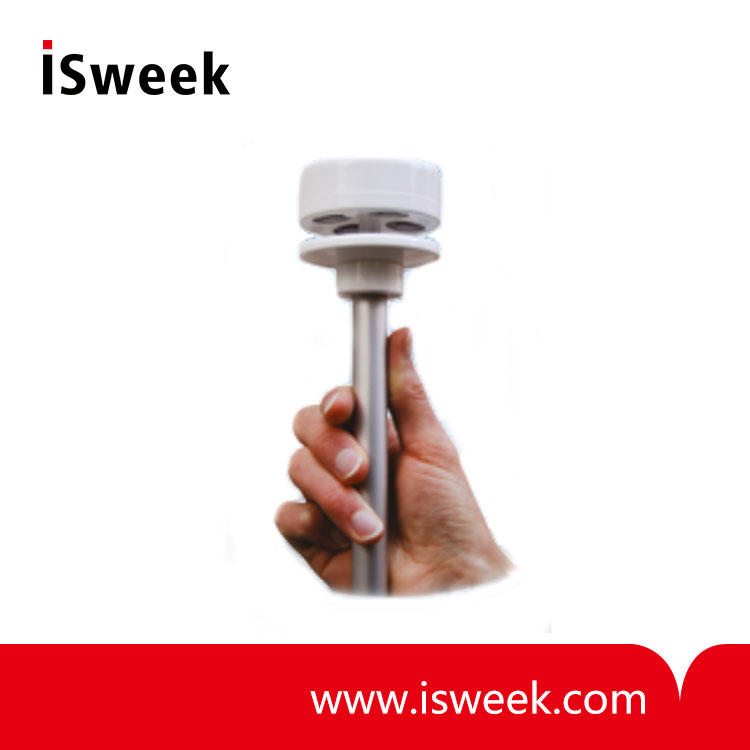

  • Ultrasonic Wind Speed Sensor
  • Ultrasonic Wind Speed Sensor
Mouse over image to zoom
Share:

Product Specification

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Description

SONIC-ANEMO-SDI is made from the CV7-V to which a SDI12 protocol and optimizing electrical consumption has been added. Sample rate is 2 Hz.
This ultrasonic wind sensor operates in a request-response mode.
This product is more energy-efficient than standard units.
The SONIC-ANEMO-SDI is dedicated to meteorological applications.

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Available data:
- Average speed and direction over 10 minutes
- Minimum wind speed and direction for that period
- Maximum wind speed (gust 3s) and direction for that period
- Software version and serial number
- Data measurement quality rate from the sensor
- Data for sensor diagnostic (manufacturer use only)

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Specification:

Output data format

SDI-12 V1.3

Information transmited

Inst. W. Speed, W. Angle, Gust WS/WA, Avg, Min, Max, avaibility

Output rate

2 Hz / 30 Hz measurement

Wind module sensitivity

0.12 m/s

Wind module resolution

0.05 m/s

Wind module dynamic

0.12 to 40 m/s

Direction sensitivity

+/-1.5°

Direction resolution

Power supply

2.7 V to 35 V DC

Electrical consumption

2.9 mA Avg. @ 12 V

Op. temp. without icing

-15°C to +55°C

Cable

5 m / 3x0.22 mm2 UV proof

Connection

3 wires

Weight of the head

N/A

Weight of unit assembly

200 gr with mounting part

Mounting

Vertical ; 300 aluminium arm, ? 16 mm


Options

These industrial option are "Din" boxes with:
? 1x connection for 24VDC/AC power supply
? 1x connection for CV7-V data
? 1x 12 V connection for CV7-V power supply
? Galvanic isolation betwen power supply and analog outputs
? Galvanic isolation betwen power supply and sensor's power supply
? The sensor input is optocoupled.


420 AC

This option features :
? 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.

? 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
? 2 Dry contacts for wind speed alarm


ANA-AC

This option features 3 outputs 0-10V:
? 0-15m/s
? 0-30m/s or 0-40m/s selectable
? 0-359° wind direction.
