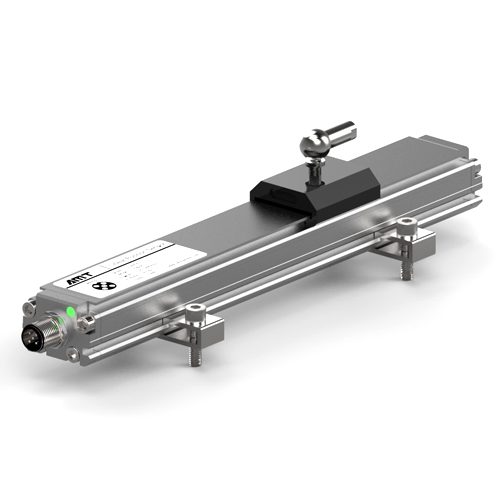

Aluminum Alloy Guide Displacement Sensor - CS series
External installation
Compact structure
Easy to use
Optional output signal: analog quantity, Start/Stop
Support Liverpool magnetic block induction distance
- Model Number: CS series
- Quantity:
- - +
Product Specification
Features:
CS series aluminum alloy guide displacement sensor, applicable to the outer installation linear displacement measurement. Product's electronic head part of the total internal in aluminium alloy profiles inside, supporting magnetic slider can, even if the whole sliding block accident beyond range will not damage sensor, support Liverpool magnetic block induction distance (farthest up to 12 mm), suitable for vibration large nc equipment position measurement. External installation, compact structure, easy to use.
Optional output signal including: analog quantity, Start/Stop, etc., can be widely used in all kinds of CNC machine tools, such as stamping machinery, building materials machinery, woodworking machinery, etc.
Products Data:
|
|
Analog output |
Start/Stop output |
|
Parameters |
Specifications |
Specifications |
|
Stroke lengths |
50-2500mm |
50-3000mm |
|
Out put |
4~20mA,0~10V |
Start/Stop |
|
Resolution |
12bit D/A |
0.1mm / 0.01mm / 0.005mm |
|
Linearity |
< ±0.02%F.S. |
< ±0.02%F.S. |
|
Repertability |
<±0.002%F.S. |
< ±0.002%F.S. |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
- 40℃ ~ +85℃ |
|
|
Protection |
IP65 |
|
|
Thread |
Clamp , M5X20 |
|

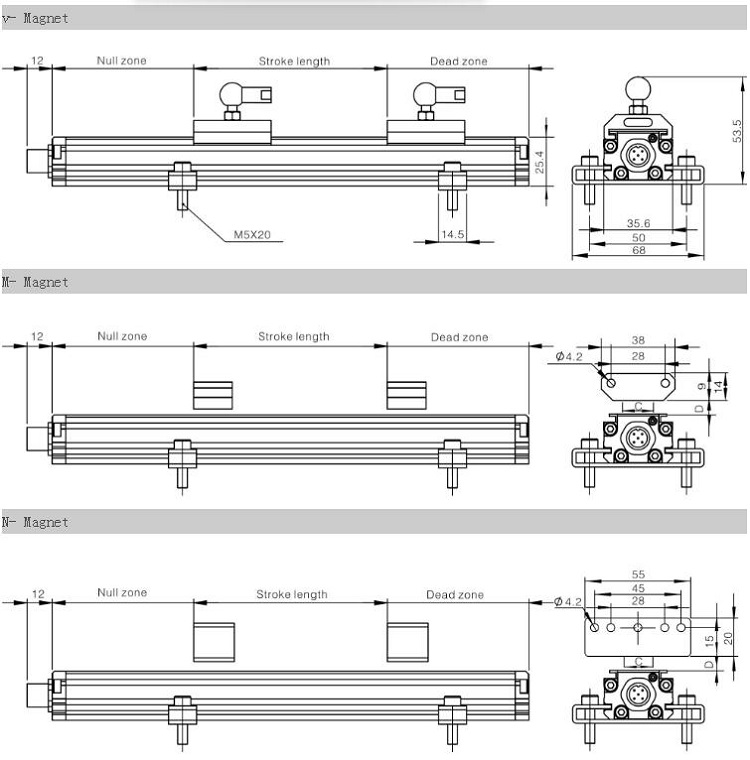

Outline dimensions:

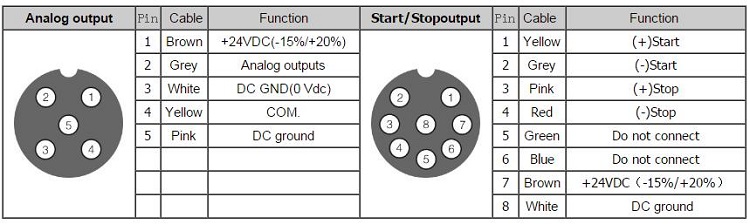

Wiring:

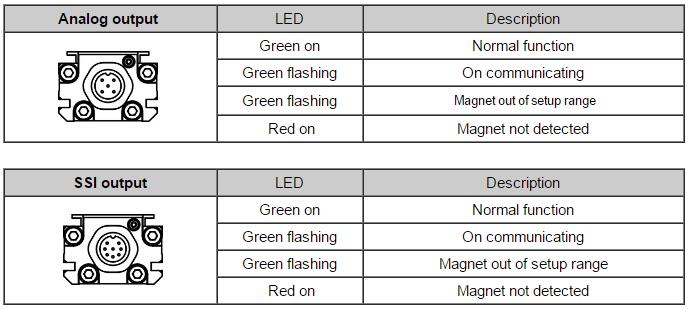

Status indicator:
