Position Sensors with Aluminum Guide Rail Type - KS series
Input voltage: 24VDC (-15/+20%)?
Operating temperature: -40℃ ~ +85℃?
External installation
Compact structure
Convenience.
Suitable for position measurement for CNC equipment with large vibration
- Model Number: KS series
- Quantity:
- - +
Product Specification
Features：

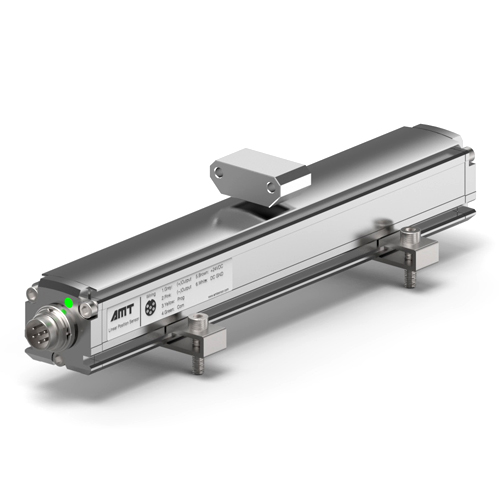

KS series position sensors which are of aluminum guide rail type, are suitable for the linear displacement measurement of the outer installation. The electronic head is total inside the aluminum alloy extrusion profiles. The supporting magnetic slider can slid the whole trip. Even if the slider is beyond the range accidently, it would not damage the sensor. It supports the ultra-long magnet sensing distance (up to 6 mm farthest)and is suitable for position measurement for CNC equipment with large vibration. It's features: external installation, compact structure, convenience.
It can be widely applied in all kinds of NC machine tools, such as pressing machinery, building materials, wood processing machinery, etc.
Products Data:
|
|
Analog output |
SSI output |
|
Parameters |
Specifications |
Specifications |
|
Stroke lengths |
50-4500mm |
50-4500mm |
|
Out put |
4~20mA,0~20mA;0~10V,-10~+10V |
24/25/26 Bit, Binary or Gray |
|
Resolution |
16bit D/A |
2/ 5/ 10/ 20/ 50/100um |
|
Linearity |
< ±0.01%F.S.( Minimum ±50μm) |
< ±0.01%F.S.( Minimum ±40μm) |
|
Repertability |
< ±0.002%F.S.( Minimum ±2μm) |
< ±0.002%F.S.( Minimum ±1 reading ) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
IP65 |
|
|
Thread |
Clamp , M5X20 |
|

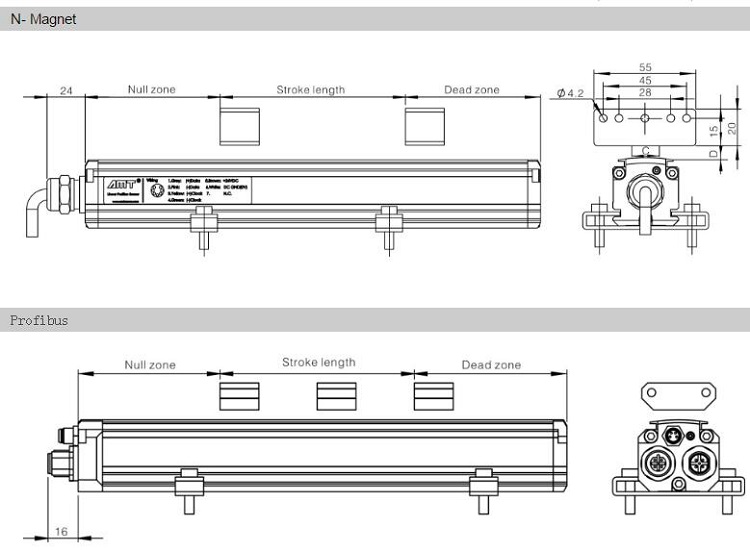

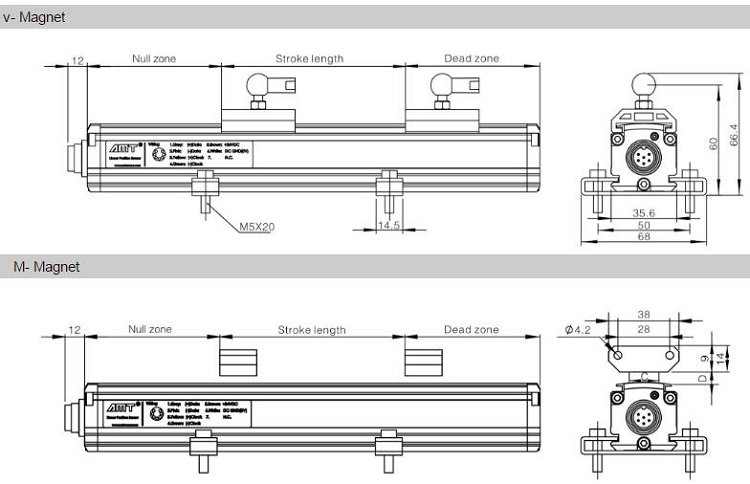

Outline dimensions:

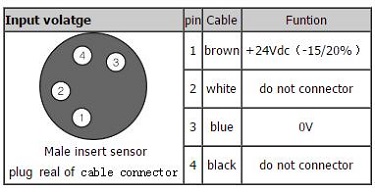

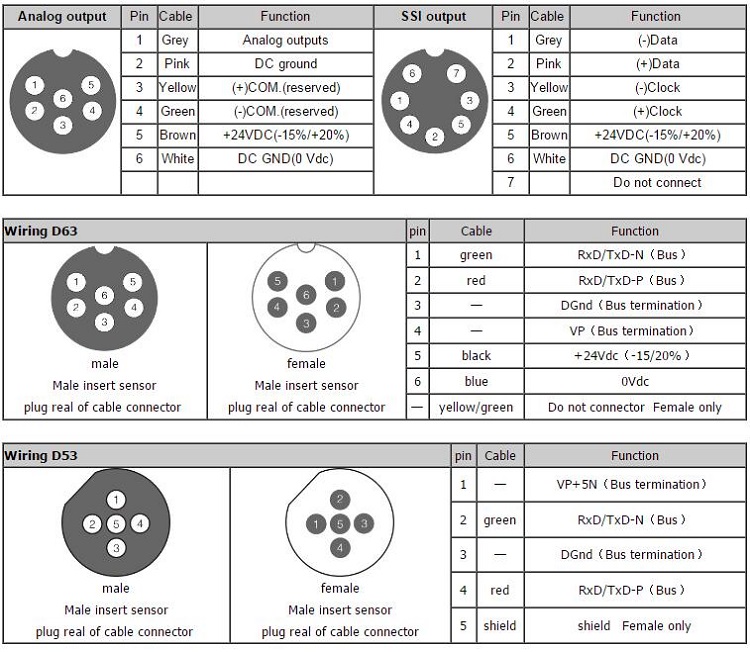

Wiring:

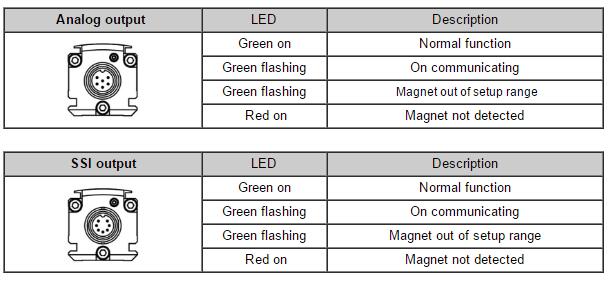

Status indicator:
