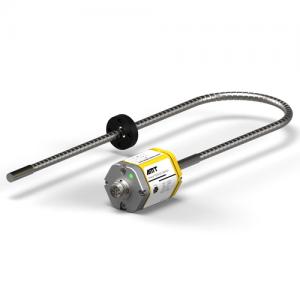

Position Sensor with Flexible Measuring Rod - KF Series

Strong anti-interference ability
Wide allowable temperature range (-40℃ - +85℃)
Non-contact sensing technology
Replacement by the convenience

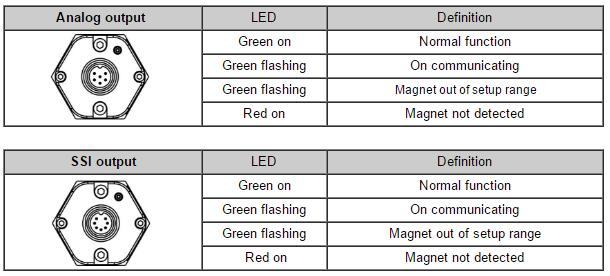

Intelligent diagnosis advantages
The products' range can reach over 7600 mm

Model Number: KF Series

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Features:
KF series position sensors with flexible measuring rod, are suitable for the occasions where measured travel is large and replaced space is narrow. Products adopt the flexible measuring rod, which can realize both the linear displacement measurement and the curve displacement measurement. Compared to rigid classifier products, RF series on one hand drastically reduce the space for replaced installation, on the other hand reduce the transport difficulties.

Belong to the same series with RH series, they have features: strong anti-interference ability, wide allowable temperature range (-40℃ - +85℃), non-contact sensing technology, replacement by the convenience, intelligent diagnosis advantages; The products' range can reach over 7600 mm.

Products Data:

	Analog output	SSI output
Project name	Parameter/Index	Parameter/Index
Stroke lengths	500-10000mm	500-10000mm
Out put	4~20mADC; 0~10VDC	24,25,26bit Binary or gray yards
Resolution	16bitD/A	2/ 5/ 10/ 20/ 50/100um
Linearity	< ±0.02%F.S. (Minimum ±100μm)	< ±0.02%F.S. Minimum ±80μm)
Repertability	< ±0.001%F.S. (Minimum ±1μm)	< ±0.001%F.S. ( Minimum ±1 reading)
Frequency response	Range related	Range related
Input voltage	24VDC (-15/+20%)
Operating temperature	-40℃ ~ +85℃
Protection	Without a protection tube IP30, load, electronic header: IP67
Thread	M4X59 , M18X1.5
