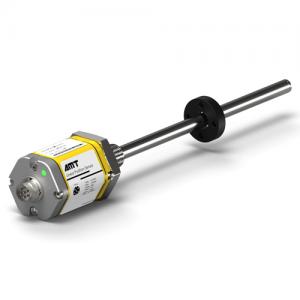

Rod style Position Sensor - KH Series

Rugged Industrial Sensor
Linear, Absolute Measurement
Non-Contact Sensing Technology
Direct Analog Outputs (Interface Options)
Linearity Deviation Less Than ±0.01%
Repeatability Within ±0.001%
LED For Sensor Diagnostics
Velocity Output Options

Model Number: KH Series

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Features:
■ Rugged Industrial Sensor
■ Linear, Absolute Measurement
■ Non-Contact Sensing Technology
■ Direct Analog Outputs (Interface Options)
■ Linearity Deviation Less Than ±0.01%
■ Repeatability Within ±0.001%
■ LED For Sensor Diagnostics
■ Velocity Output Options
■ High-Speed Update Options
■ Dual Outputs Options (Current or Voltage)
■ Full Stroke Null/Span adjustment

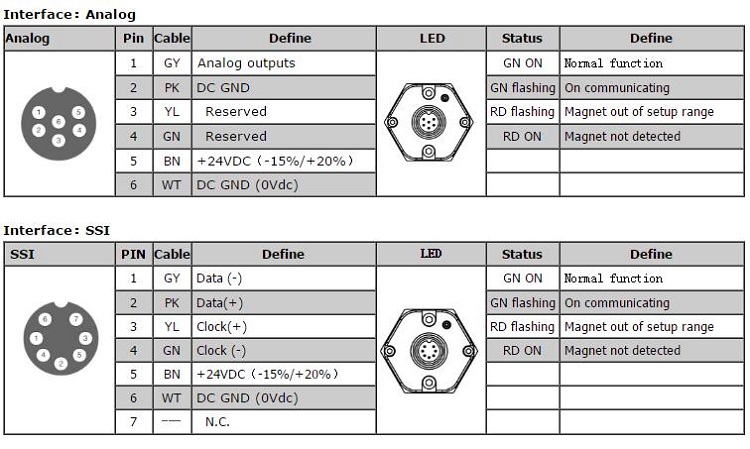

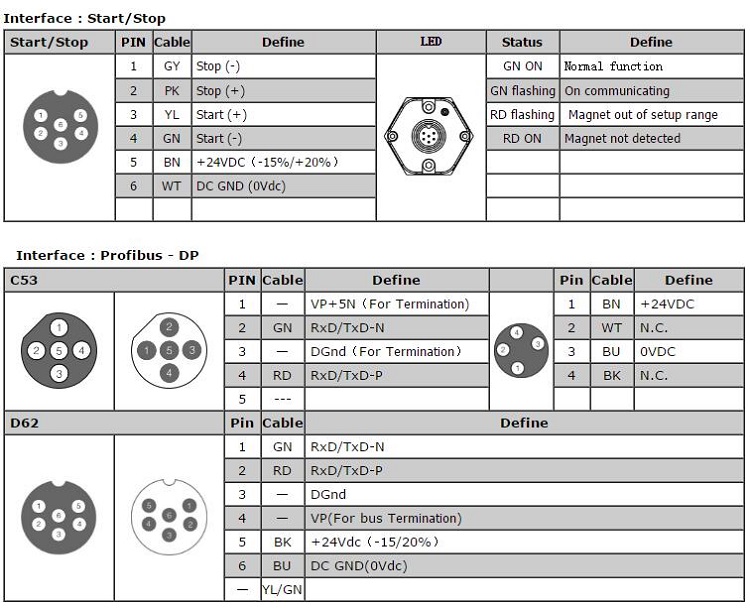

Interface	Analog	SSI	start/stop
Output	4~20mA; 0~10V	25, 24, 26 Binary/Gray	RS422

Interface	Profibus	Canbus	Modbus
Output	Profibus - DP	Protocal: Basic / Open	RS485

Stroke	25mm~7620mm
Accuracy	Linearity Deviation <±0.01%F.S., Repeatability <±0.001%F.S.
Installation	M18x1.5 , 3/4" -16UNF-3A
Protection	IP67, Pressure rating: 35MPa / 70MPa peak
Temperature	-40℃ ~ +85℃, start/stop: -40℃ ~ +105℃;
Voltage	Input : 24VDC (-15/+20%), Polarity protection , Overvoltage protection
Magnet	OD33; OD25.4; OD17.4; OD63.5

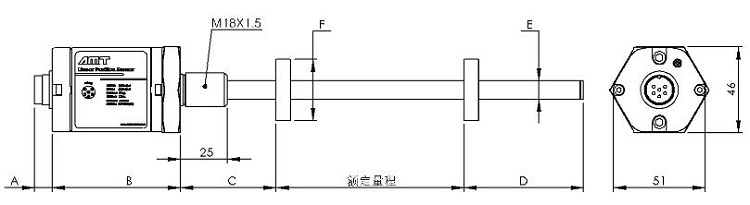

Dimensions:

NO.	Define	Analog	SSI	start/stop	Profibus	Canbus
A	Connector Height	Connector:12mm; Cable: 16mm			Connector:16mm; Cable: 18mm
B	Head length	68mm			78mm
C	Null Zone	50.8mm
D	Dead Zone	63.5mm
E	Rod O.D	7mm; 8mm; 10mm ; 12mm
F	Magnet O.D.	OD17.4; OD20; OD25.4; OD33; OD63.5
