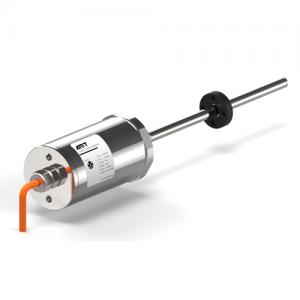

Waterproof Model Position Sensors - WH Series

anti-interference
good environmental tolerability (voltage 35 MPa long-term / 70 MPa peak, heat resistance -40 °---+ 85 °)
never wear(non-contact measuring ability)
high resolution (0.5 um)
high precision (repeatability:< ±0.001% full stroke)
replacement by the convenience
intelligent diagnosisand and other special advantages.

  • Model Number: WH Series
Quantity:
- +
  • Waterproof Model Position Sensors
Mouse over image to zoom
Share:

Product Specification

Features：
WH series waterproof model position sensors, their protection capacity reach IP69K. The features: anti-interference, good  environmental tolerability (voltage 35 MPa long-term / 70 MPa peak, heat resistance -40 °---+ 85 °), never wear(non-contact measuring ability), high resolution (0.5 um), high precision (repeatability:< ±0.001% full stroke), replacement by the convenience, intelligent diagnosisand and other special advantages.

It can be widely used in metallurgy (continuous casting and rolling), petrochemical, port machinery, hydraulic pressure tester, water conservancy and electricity, etc.

Products Data:



Analog output

SSI output

Parameters

Specifications

Specifications

Stroke lengths

25-7600mm

25-7600mm

Out put

 4~20mADC; 0~10VDC

 24,25,26bit Binary or gray yards

Resolution

16bit D/A

0.5/ 1/ 2/ 5/ 10/ 20/ 50/ 100um

Linearity

< ±0.01%F.S.( Minimum ±50μm)

< ±0.01%F.S.( Minimum ±40μm)

Repertability

 < ±0.001%F.S.( Minimum ±1μm)

< ±0.001%F.S.( Minimum ±1 reading )

Frequency response

 Range related

Range related

Input voltage

24VDC (-15/+20%)

Operating temperature

- 40℃ ~ +85℃

Protection

IP69K

Thread

 M18×1.5 or 3/4"-16 UNF-3A

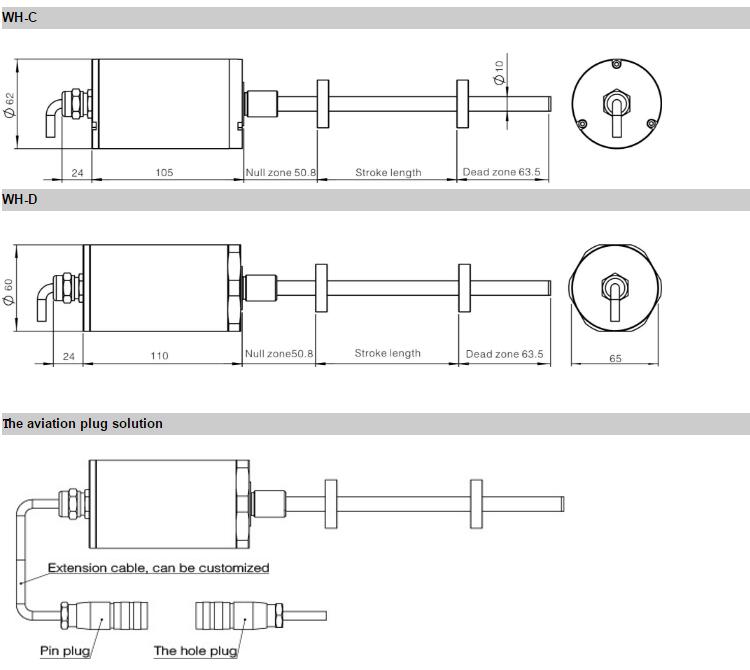

Outline dimensions:

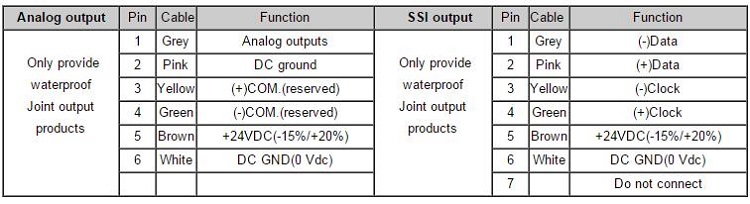

Electrical connection:
