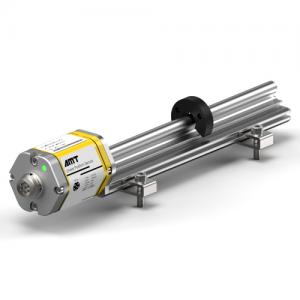

Position Sensor-KP Series - KP Series
Input voltage: 24VDC (-15/+20%)
Operating temperature: -40℃ ~ +85℃
Protection: IP67
Wide allowable temperature range
Non-contact sensing technology
Replacement by convenience
Online intelligent diagnosis
- Model Number: KP Series
- Quantity:
- - +
Product Specification
Features:
KP series position sensors which are with aluminum alloy rail, are suitable for linear displacement measuring occasions where needs external installation. The features: wide allowable temperature range, non-contact sensing technology, replacement by convenience, online intelligent diagnosis, etc.
Products Data:
|
|
Analog output |
SSI output |
|
Project name |
Specifications |
Specifications |
|
Measuring range |
25-3500mm |
25-3500mm |
|
Out put |
4~20mA, 0~20mA; 0~10V, -10~+10V |
24/25/26 Bit, Binary or Gray |
|
Resolution |
16bit D/A |
0.5/1/ 2/ 5/ 10/ 20/ 50/ 100um |
|
Linearity |
< ±0.01%F.S.( Minimum ±50μm) |
< ±0.01%F.S.( Minimum ±40μm) |
|
Repertability |
< ±0.001%F.S.( Minimum ±1μm) |
< ±0.001%F.S.( Minimum ±1 reading ) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
IP67 |
|
|
Thread |
Clamp , M5X20 |
|

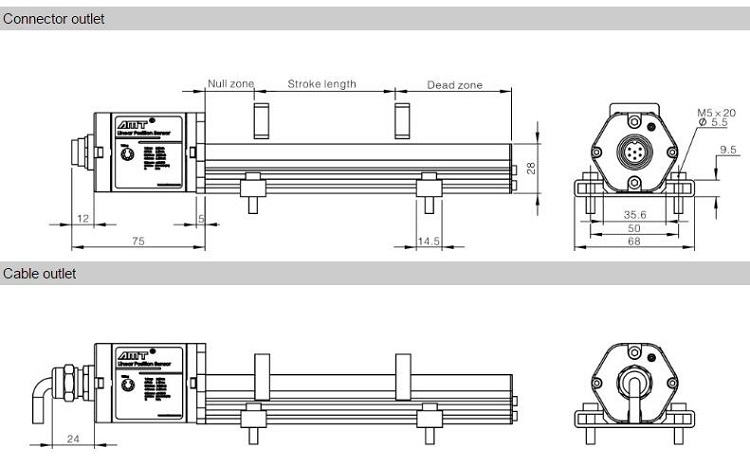

Outline dimensions:

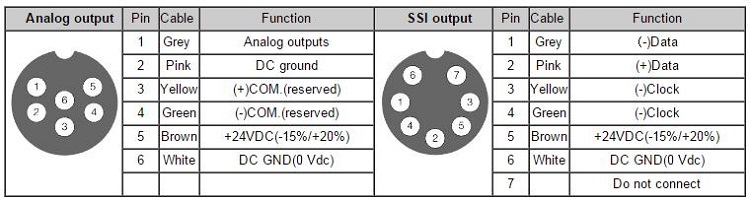

Electrical connection:
Status indicator:
