Position Sensors with Aluminum Guide Rail Type - CL Series
external installation
compact structure
convenience
Analog outputs: dc voltage 0 ~ 10 V (forward, reverse)
- Model Number: CL Series
- Quantity:
- - +
Product Specification
Features:

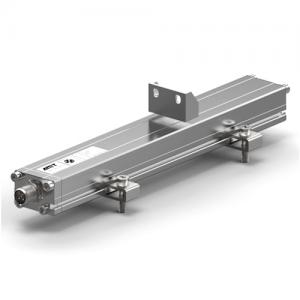

CL series position sensors with aluminum guide rail type, are suitable for linear displacement measurement of the outer installation.The complete height after installation is only 27 mm, so it is very suitable for the occassions with high demands for installation space. Even if the slider is beyond the range accidently, it would not damage the sensor. It supports the ultra-long magnet sensing distance (up to 6 mm farthest)and is suitable for the position measurement for CNC equipment with large vibration. It's features: external installation, compact structure, convenience.
Analog outputs include: dc voltage 0 ~ 10 V (forward, reverse);They can be widely applied in all kinds of NC machine tools, such as pressing machinery, building materials, wood processing machinery, etc.
Products Data:
|
|
Analog output |
|
Parameters |
Specifications |
|
Stroke lengths |
50-2000mm |
|
Out put |
0~10VDC |
|
Resolution |
12bit D/A |
|
Linearity |
< ±0.02%F.S. |
|
Repertability |
< ±0.002%F.S. |
|
Frequency response |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
Operating temperature |
-40℃ ~ +85℃ |
|
Protection |
IP65 |
|
Thread |
clamp , M5X20 |
Outline dimensions:

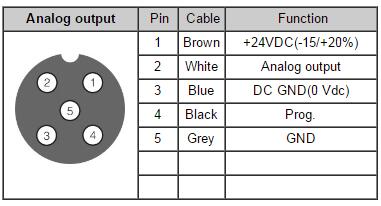

Wiring:
