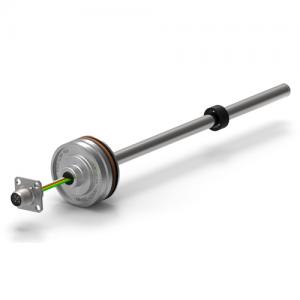

Analog Output Linear Position Sensor - MB Series

Measuring range: 50-2500mm?
Output: 0~10VDC
Compact structure
Strong anti-interferenceability
Sealedstain-resistance
Oil-resistance
Waterproof (vapor)

  • Model Number: MB Series
Quantity:
- +
  • Analog Output Linear Position Sensor
Mouse over image to zoom
Share:

Product Specification

Features:
MB series products are customized products for the American Parker and the size of the electronic head is only 23 mm. They adopt the sealed type design and are suitable for  measuring occasions with strict demands for the installation space of electronic head. The features: compact structure, strong anti-interferenceability, sealedstain-resistance, oil-resistance, waterproof (vapor), etc.

Analog outputs includee: dc current 4 ~ 20 mA (forward, reverse) and dc voltage 0 ~ 10 V (forward, reverse); SSI outputs includee: 24, 25, 26 bit binary or gray code; They can be widely used in engineering machinery, mechanical power and some other occassions.

Products Data:


Analog output

Parameters Specifications
Measuring range 50-2500mm
Output

0~10VDC

Resolution 16bit D/A
Linearity < ±0.04%F.S.
Repertability  < ±0.005%F.S.
Frequency response  Range related
Input voltage 24VDC (-15/+20%)
Operating temperature -40℃ ~ +85℃
Protection

IP67

Thread Tight set screws,DIN 913

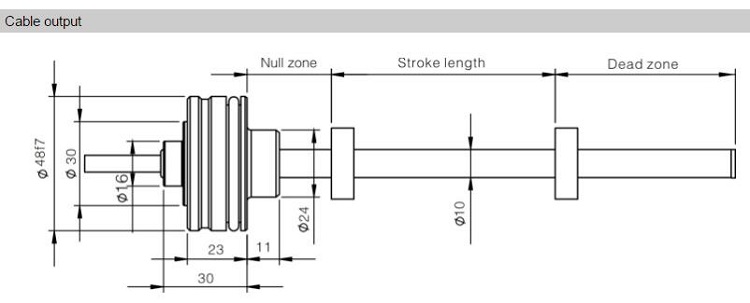

Outline dimensions:


Electrical connection:

Analog output

  Pin

Cable

Function

 Only provides

Straight out of the cable products

1

Grey

 Analog outputs

2

Pink

DC ground

3

Yellow

(+)COM.(reserved)

4

Green

(-)COM.(reserved)

5

Brown

+24VDC(-15%/+20%)

6

White

DC GND(0 Vdc)
