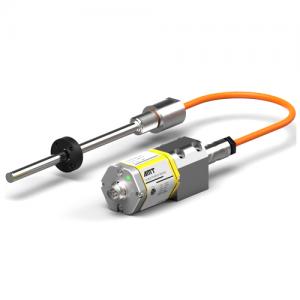

Probe Divided Linear Position Sensor - KD Series
Small installation size
Strong anti-interference ability
Wide allowable temperature range (-40℃ - +85℃)
Non-contact sensing technology
Replacement by the convenience
Intelligent diagnosis advantages
- Model Number: KD Series
- Quantity:
- - +
Product Specification
Fatures:
KD series position sensors which are compact and with spilt type, are suitable for built-in measuring occasions with strict demmands for the installation space of electronic heads. The features: small installation size, strong anti-interference ability , wide allowable temperature range (-40℃ - +85℃), non-contact sensing technology, replacement by the convenience, intelligent diagnosis advantages, etc.
The part of the electronic head that need to be installed inside the the fuel tank has a small size, which is 26.9 mm (diameter) x 32 mm (height), and it is used in some high demand areas such as the wind power, engineering machinery, high speed railway, etc.
Products Data:
|
|
Analog output |
SSI output |
|
Project name |
Specifications |
Specifications |
|
Measuring range |
25-2500mm |
25-2500mm |
|
Out put |
4~20mADC; 0~10VDC |
24, 25, 26bit Binary or gray yards |
|
Resolution |
16bit D/A |
1/ 2/ 5/ 10/ 20/ 50 100um |
|
Linearity |
< ±0.01%F.S. (Minimum ±50μm) |
< ±0.01%F.S. (Minimum ±40μm) |
|
Repertability |
< ±0.002%F.S. (Minimum ±2μm) |
< ±0.002%F.S. (Minimum ±1 reading) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
Electronic head part: IP67, Classifier part : IP69 |
|
|
Thread |
M6X45, M18X1.5 |
|

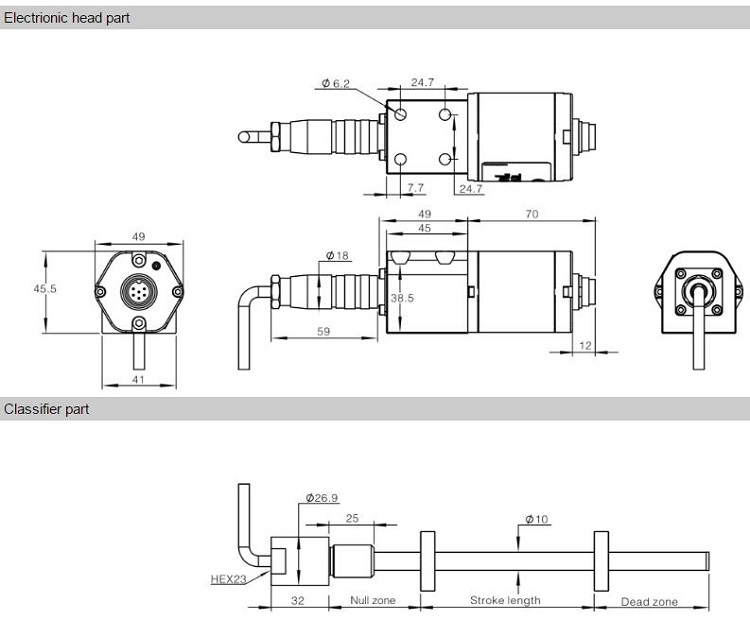

Outline dimensions:

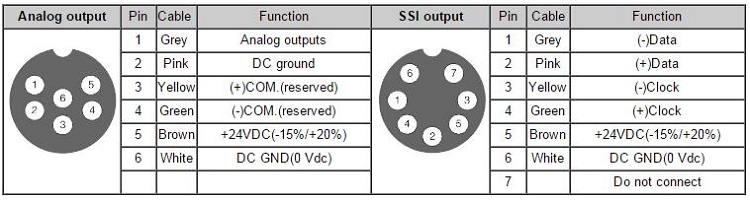

Wiring & Diagnostic Display:

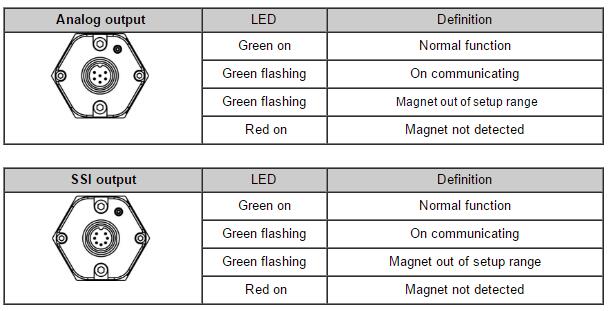

Status indicator:
