Flange Mounting Position Sensor - GB Series
Input voltage: 24VDC (-15/+20%)
Operating temperature: -40℃ ~ +85℃
Protection: IP68
Compact structure
Strong anti-interference ability
Sealed stain-resistance
Oil-resistance
Waterproof (vapor)
- Model Number: GB Series
- Quantity:
- - +
Product Specification
Features：

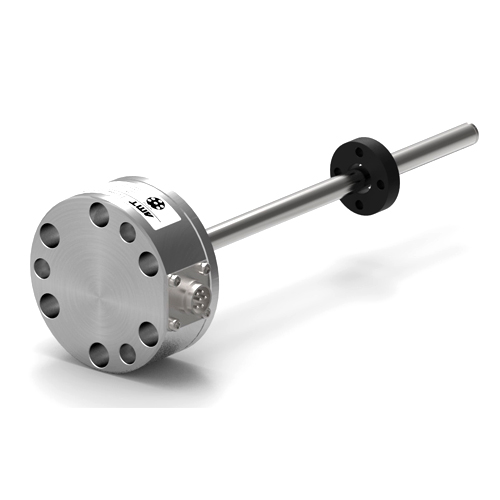

The electronic head's size of GB series products is 34mm.They adopt the sealed type design and very suitable for U earrings hydraulic cylinders' built-in installation. They have many specific advantages: compact structure, strong anti-interference ability, sealed stain-resistance, oil-resistance, waterproof (vapor).
Analog outputs includee: dc current 4 ~ 20 mA ( forward, reverse ) and dc voltage 0 ~ 10 V (forward, reverse); SSI outputs include: 24, 25, 26 bit binary or gray code; The products can be widely used in engineering machinery, mechanical power and some other occasions.
Products Data:
|
|
Analog output |
SSI output |
|
Project name |
Specifications |
Specifications |
|
Stroke lengths |
50-3250mm |
50-3250mm |
|
Out put |
4~20mADC; 0~10VDC |
24, 25bit, Binary or Gray |
|
Resolution |
16bit D/A |
5/ 10/ 20/ 50/100um |
|
Linearity |
<±0.01%F.S. (Minimum ±50μm) |
<±0.02%F.S. (Minimum ±60μm) |
|
Repertability |
<±0.001%F.S. (Minimum ±1μm) |
<±0.001%F.S. (Minimum ±1 Minimum) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
IP68 |
|
|
Thread |
flange , six M6X16 |
|
Outline dimensions:

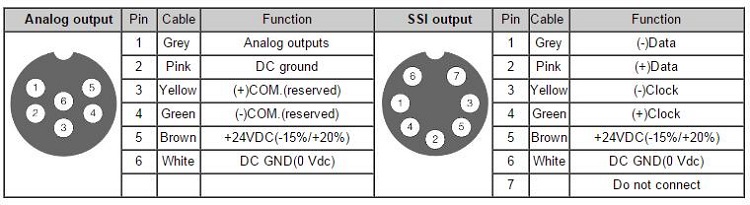

Wiring:
