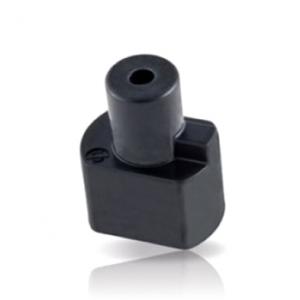

Magnet Carrier for use with Angle Position Sensors - AS500106

? Vibration: 15g sinusoidal, 9.26g RMS axial; 40Hz - 2kHz all 3 axes
? Operation Temperature: -40 to 125 °C (-40 to 257 °F)
? Magnet carrier for use with Angle Position Sensors
? Magnet carrier for Cherry AN8 and AN9 sensors
? PPS housing
? Samarium Cobalt 28 magnet
? RoHS compliant

  • Model Number: AS500106
  • Data Sheet: Date Sheet File
Quantity:
- +

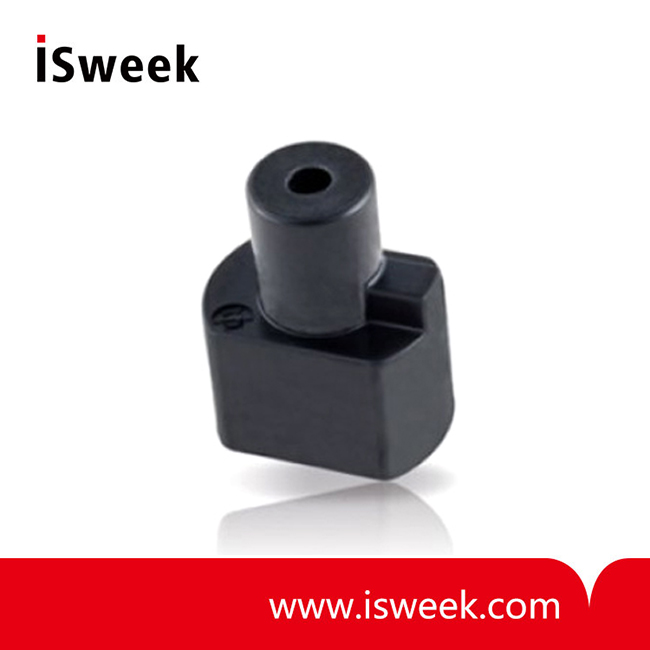

  • Magnet Carrier for use with Angle Position Sensors
  • Magnet Carrier for use with Angle Position Sensors
Mouse over image to zoom
Share:

Product Specification

AS500106
Magnet carrier for use with Angle Position Sensors

AS500106 Magnet Carrier Features
? Magnet carrier for Cherry AN8 and AN9 sensors
? PPS housing
? Samarium Cobalt 28 magnet
? RoHS compliant

AS500106 Magnet Carrier Environmental Specifications

Vibration
 15g sinusoidal, 9.26g RMS axial; 40 Hz - 2 kHz all 3 axes
Operation Temperature
 -40 °C to 125 °C (-40 °F to 257 °F)
Storage Temperature
 -40 °C to 150 °C (-40 °F to 302 °F)
Salt Spray
 SAEJ1455, Section 4.3.3
Immersion
 Tested per SAE J 1455, Section 4.4.1: Engine oil and additives,
Transmission oils, Water, Power steering fluid, Brake fluids, Washer
solvent, Gasoline, Diesel fuel, Alcohol, Antifreeze water mixture, Battery
acid, Salt water, Kerosene, Ammonia

AS500106 Magnet Carrier Mechanical Specifications
Recommended Fastener
 M4 Cap Screw
Recommended Torque
 3 Nm (26.5 in lbs)

Products
Part Number
 Description
 Sensing Range
AS500106
 Magnet only
 N/A
CU103601
 Kit with AN820001 sensor
 180°
CU103602
 Kit with AN820002 sensor
 360°
CU103603
 Kit with AN820003 sensor
 45°
