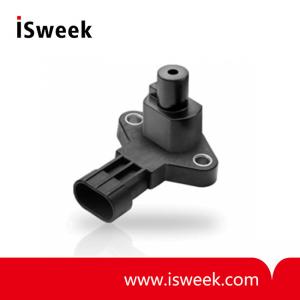

Non-contact Intrinsically Linear Angle Position Sensors - AN8 Series

? Angular position sensor with high tolerance for misalignment
? Non-contact angular position sensing and full 360° rotation
? Available with Delphi connector or 12” (305 mm) wire leads
? Vibration: 6g sinusoidal, 8 g RMS axial; 40Hz – 2 kHz all 3 axes
? RoHS compliant
? IP67
? Maximum air gap of 5.5 mm (0.22”)

  • Model Number: AN8 Series
  • Data Sheet: Date Sheet File
Quantity:
- +

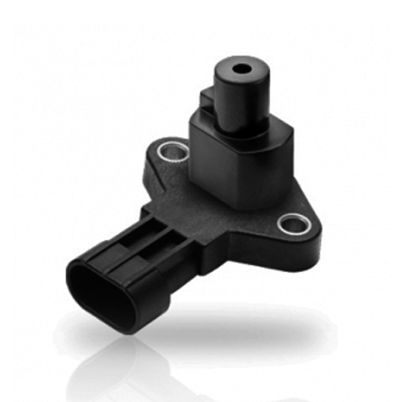

  • Non-contact Intrinsically Linear Angle Position Sensors
  • Non-contact Intrinsically Linear Angle Position Sensors
Mouse over image to zoom
Share:

Product Specification

AN8 Sensors
Programmable, non-contact magnetic position sensors capable of continuous rotation

AN8 Series Angle Position Sensors Description
The AN8 Series sensors are non-contact, intrinsically linear angle position sensors. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.

AN8 Series Angle Position Sensors Features
? Angular position sensor with high tolerance for misalignment
? Non-contact angular position sensing and full 360° rotation
? Custom programming available for: angle range, slope, PWM output, custom magnets – contact factory
? No mechanical interface means no parts to wear out or jam
? Available with Delphi connector or 12” (305 mm) wire leads
? RoHS compliant
? IP67
? Maximum air gap of 5.5 mm (0.22”)*

AN8 Series Angle Position Sensors Typical Applications
? Implement (fork lift, agricultural trailer hitch, etc.) position sensing
? Steer, throttle by wire
? Gear selection
? Zero-contact encoder alternative
? Replacement for smart bearings
? Outboard trim sensing

AN8 Series Angle Position Sensors Environmental Specifications

Vibration
6g sinusoidal, 8 g RMS axial; 40Hz – 2 kHz all 3 axes
Operating Temperature
-40 °C to 125 °C (-40 °F to 257 °F) with Delphi connectors,
-40 °C to 150 °C (-40 °F to 302 °F) with wire leads
Storage Temperature
-40 °C to 150 °C (-40 °F to 302 °F)
Ingress Protection
IP67

AN8 Series Angle Position Sensors Electrical Specifications
Input Voltage
5.0 VDC ± 10%
Output Voltage
10% to 90% of input (see graph for voltage vs. rotation angle characteristics)
Input Current
14 mA typ., 16 mA max.
Output Current
-8 mA to 8 mA
Output Accuarcy
±3.5%
Output Linearity
±3.5%
Maximum Overvoltage
16 VDC
Absolute Max. Output Current
±30 mA
Output Type
Analog (PWM available)

AN8 Series Angle Position Sensors Mechanical Specifications
Housing Material
Glass Reinforced Plastic
Mechanical Travel
0° to 360° (continuous)
Mating Connector
Delphi Metri-pak 150.2 12162185; Terminal 1214075 / 2047680
Maximum Air Gap*
*with AS500106 magnet carrier
5.5 mm (0.22")
Maximum Center-To-Center Offset
2 mm radial (magnet to center)

AN8 Series Angle Position Sensors Products
Part Number
(Sensor)
Sensor (incl.
AS500106 magnet)
Sensing Range
Wires
Connectors
Terminals
AN820001
CU103601
180°
N/A
Packard Metri-pack
1214075 / 2047680
AN820002
CU103602
360°
N/A
Packard Metri-pack
1214075 / 2047680
AN820003*
CU103603
45°
N/A
Packard Metri-pack
1214075 / 2047680
AN820031
--------
180°
18 AWG x 305 mm (12")
N/A
N/A
AN820032
--------
360°
18 AWG x 305 mm (12")
N/A
N/A
AN820033*
--------
45°
18 AWG x 305 mm (12")
N/A
N/A
*Not commonly stocked
