Product Specification

ANG Sensors
Thin, programmable, non-contact magnetic position sensors capable of continuous rotation, with dual outputs available.

ANG Series Angle Position Sensors Description

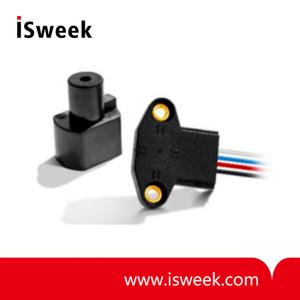

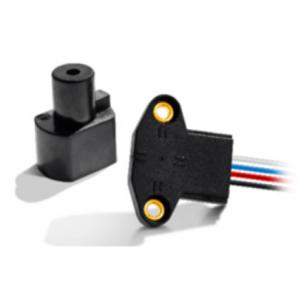

The ANG Series sensors are non-contact, intrinsically linear position sensors with one or two independent (redundant) outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.

Actuator magnet part number AS500106 is required to assure proper operation (ordered separately).

ANG Series Angle Position Sensors Features
? Angular position sensor with high tolerance for misalignment
? Non-contact angular position sensing and full 360 O rotation
? Custom programming available for: angle range, slope, PWM output – contact factory
? No mechanical interface means no parts to wear out or jam
? Comes with 20 AWG 305 mm (12”) discrete wire leads
? RoHS Compliant
? IP68*
? Maximum air gap of 6 mm (0.24”)
? Compliant to industrial/automotive EMC/EMI/ESD directives

ANG Series Angle Position Sensors Typical Applications
? Hydraulic valves
? Hydraulic controls
? Electric drives
? Pneumatic controls
? Zero-contact encoder alternative
? Gear selection / shifting position
? Lifting / ride height position
? Throttle / pedal position
? Steering wheel position

ANG Series Angle Position Sensors Environmental Specifications
