Non-contact Intrinsically Linear Angle Position Sensors - AN9 Series

? Vibration: 15g sinusoidal, 9.26g RMS axial; 40 Hz – 2 kHz all 3 axes
? Operating Temperature: -40 to 125°C (-40 to 257°F)
? RoHS Compliant
? Ingress Protection: IP67
? Input Voltage: 5.0 VDC ± 10%
? Input Current: 14 mA typ., 16 mA max.
? Output Voltage: 10% to 90% of input
? Output Current: -8 mA to 8 mA

  • Model Number: AN9 Series
  • Data Sheet: Date Sheet File
Quantity:
- +

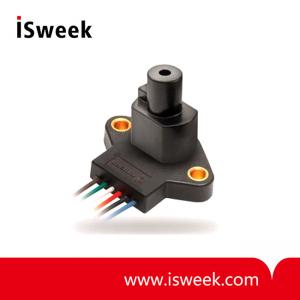

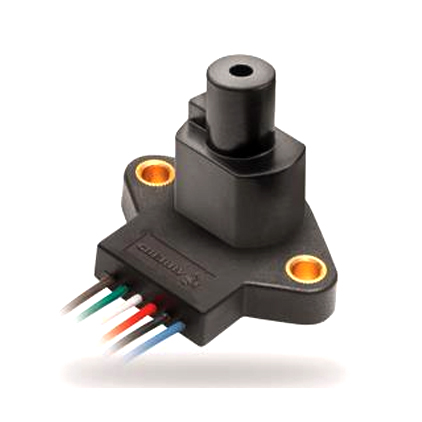

  • Non-contact Intrinsically Linear Angle Position Sensors
  • Non-contact Intrinsically Linear Angle Position Sensors
Mouse over image to zoom
Share:

Product Specification

AN9 Sensors
Thin, programmable, non-contact magnetic position sensors capable of continuous rotation with dual outputs

AN9 Series Angle Position Sensors Description
The AN9 Series sensors are non-contact, intrinsically linear angle position sensors with two independent outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.

AN9 Series Angle Position Sensors Features
? Angular position sensor with high tolerance for misalignment
? Non-contact angular position sensing and full 360° rotation
? Dual independent (fully redundant) outputs assure high reliability
? Custom programming available for: angle range, slope, PWM output, custom magnets – contact factory
? No mechanical interface means no parts to wear out or jam
? Comes with 18 AWG 305 mm (12”) wire leads
? RoHS Compliant
? IP67
? Maximum air gap of 5.5 mm (0.22”)*

AN9 Series Angle Position Sensors Typical Applications
? Implement (fork lift, agricultural trailer hitch, etc.) position sensing
? Steer, throttle by wire
? Gear selection
? Zero-contact encoder alternative
? Replacement for smart bearings
? Outboard trim sensing

AN9 Series Angle Position Sensors Environmental Specifications

Vibration
15g sinusoidal, 9.26g RMS axial; 40 Hz – 2 kHz all 3 axes
Operating Temperature
-40 °C to 125 °C (-40 °F to 257 °F)
Storage Temperature
-40 °C to 150 °C (-40 °F to 302 °F)
Ingress Protection
IP67

AN9 Series Angle Position Sensors Electrical Specifications
Input Voltage
5.0 VDC ± 10%
Output Voltage
10% to 90% of input (see graph for voltage vs. rotation angle characteristics)
Input Current
14 mA typ., 16 mA max.
Output Current
-8 mA to 8 mA
Output Accuracy
±3.5%
Output Linearity
±3.5%
Maximum Overvoltage
16 VDC
Absolute Max. Output Current
±30 mA
Output Type
Analog (PWM available)

AN9 Series Angle Position Sensors Mechanical Specifications
Housing Material
Glass Reinforced Plastic
Mechanical Travel
0° to 360° (continuous)
Maximum Air Gap*
*with AS500106 magnet carrier
5.5 mm (0.22")
Maximum Center-To Center Offset
2 mm radial (magnet to center)

AN9 Series Angle Position Sensors Products
Part Number (Sensor)
Sensing Range
Wires
AN920031
180°
18 AWG x 305 mm (12")
AN920032
360°
18 AWG x 305 mm (12")
AN920035
45° 18 AWG x 305 mm (12")
AN920036
90° 18 AWG x 305 mm (12")
